Single Augers A380FD

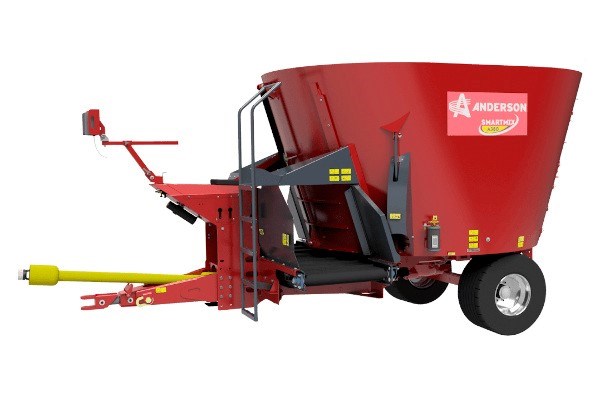

The Anderson pull type single auger A380 mixer (conveyor discharge) with side trap discharge, will meet todays needs for high output and intensive use. It has been developed for farms where the footprint of the machine is an important factor. These mixers are compact and highly maneuvrable.
Features
- Capacity of 380 ft³ (10.8 m³ ) to 500 ft³ (14.2 m³ )
- HP PTO Requirement in low speed: minimum 50 HP in high speed: minimum 75 HP
- Height of 106 in (2.69 m) to 124 in (3.15 m) with extension
- Unloading the material by side trap or front conveyor
- 1 auger with 6 reversible knives in carbide tungsten (10 knives per auger, optional)
Specs
| Capacity | |
| Capacity (no capacity extension) | 380 ft3 (10.8 m3) |
| 6 in capacity extension | 420 ft3 (11.9 m3) |
| 12 in capacity extension | 460 ft3 (13 m3) |
| 18 in capacity extension | 500 ft3 (14.2 m3) |
| Number of Auger | 1 |
| Dimensions | |
| Length (A) | 217 in (5.51 m) |
| Height (B) no extension | 106 in (2.69 m) |
| 6 in capacity extension | 112 in (2.84 m) |
| 12 in capacity extension | 118 in (3 m) |
| 18 in capacity extension | 124 in (3.15 m) |
| Hay retention ring (additionnal height) | 0 in / 3,5 in |
| Width (C) | |
| Without incline conveyor | 101 in (2.57 m) |
| With incline conveyor (retracted) | 117 in (2.97 m) |
| Incline conveyor operating angle (degrees) | 26 @39 degrees |
| Outside width of the wheels | 86 in (2.18 m) |
| Lateral distance to discharge point (D) | |
| Incline conveyor chain / belt 3 ft at min.26 angle /max 40 | 30-28in at 26º / 28-25in at 40º |
| Incline conveyor chain / belt 4 ft at min. 26 angle /max 40 | 39-41in at 26º / 48-48in at 40º |
| Incline conveyor chain / belt 5 ft at min. 26 angle /max 40 | 46-48in at 26º / 59-59in at 40º |
| Incline conveyor chain / belt 6 ft at min. 26 angle /max 40 | 50-52in at 26º / 65-65in at 40º |
| Incline conveyor chain / belt 7 ft at min. 26 angle /max 40 | 57-59in at 26º / 75-75in at 40º |
| Incline conveyor chain / belt 8 ft at min. 26 angle /max 40 | 61-63in at 26º / 82-82in at 40º |
| Discharge height (E) | |
| Incline conveyor chain / belt 3 ft at min. 26 angle /max 40 | 35-37in at 26º / 42-42in at 40º |
| Floor ST (E1) / Conveyor FD (E2) to ground | 26 in (0.66 m) |
| Specifications | |
| PTO shaft - Standard specification | 540 RPM 1" 3/8 Z6 |
| PTO shaft - Option specification | 1000 RP m 1" 3/8 Z21 |
| 2 speed Gear Box | Optional |
| 2 Speed Gear Box and ratio | D732, 1;1,5 54in(888cm)0 RPM |
| Minimum PTO HP Requirement - Low Speed | 50 |
| Minimum PTO HP Requirement - High Speed | 75 |
| Auger RPM - Low Speed | 27 RPM |
| Auger RPM - Standard High speed | 41 RPM |
| Standard planetary model and ratio configuration | 1602 @13.4 |
| Optionnal Planetary | N/A |
| Floor Thickness (AR235 grade or equivalent) | 3/4 in |
| Sidewall Thickness (AR235 grade or equivalent) | 1/4 in |
| Flighting Thickness (AR235 grade or equivalent) | 5/8 in |
| Standard knives per auger | 6/ 10 optional |
| Driveline security | Shear bolt |
| Hydraulic flow requirement | 10-15 US gal/ m in 37-56 L/ m in |
| Hydraulic pressure | 160-200 bar (2300-2900 psi) |
| Load cell | 3 |
| Scale system | DG500 (standard) |
| Machine Weight (empty) - STD configuration | 9707 lb (4402 kg) |
| Utility load capacity | 11 020 lb (4998 kg) |
| Axle - Standard specifications | Single |
| Axle - Optional specifications | N/A |
| Wheels - Standard specifications | 15.0/55-17 26 PLY |
