Anderson Group S280ST

New Equipment / All Lines / Anderson Group / Mixers / Single Augers / S280ST
Anderson Group S280ST for sale at White's Farm Supply

Double tap to zoom

Anderson Group S280ST for sale at White's Farm Supply

Single Augers S280ST

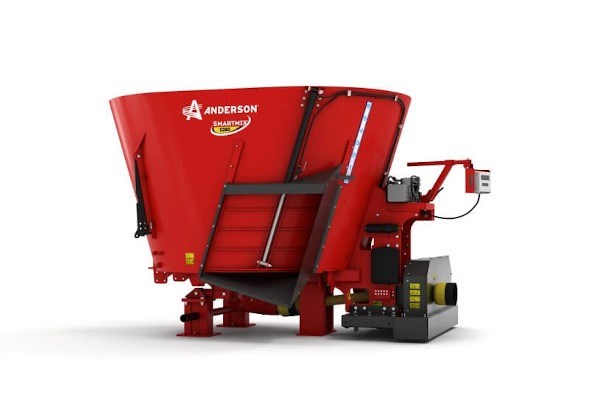

The S280ST single auger mixers (side trap discharge)



Features

The Anderson S280ST single auger mixers (side trap discharge) have been developed for farms where the footprint of the machines is an important factor. These mixers are compact.  These low tubs easily find their place on farms with low ceilings.

Specs

Capacity
Capacity (no capacity extension) 280 ft3 (7,9 m3)
6 in capacity extension 316 ft3 (9 m3)
12 in capacity extension 352 ft3 (10 m3)
18 in capacity extension 388 ft3 (11 m3)
Number of Auger 1
Dimensions
Length (A) 140 in (3,56 m)
Height (B) no extension 97 in (2,46 m)
6 in capacity extension 103 in (2,62 m)
12 in capacity extension 109 in (2,77 m)
18 in capacity extension 115 in (2,92 m)
Hay retention ring (additionnal height) 0 in / 3,5 in
Width (C)
Without incline conveyor 90 in (2,29 m)
With incline conveyor (retracted) 106 in (2,69 m)
Incline conveyor operating angle (degrees) 26 @ 39
Lateral distance to discharge inint (D)
Incline conveyor 3ft Chain-Belt 26° 30in(76cm)-34in(86cm)
Incline conveyor 4ft Chain-Belt 26° 34in(86cm) -38in(97cm)
Incline conveyor 5ft Chain-Belt 26° 41in(104cm) -45in(114cm)
Incline conveyor 6ft Chain-Belt 26° 45in(114cm) -49in(124cm)
Incline conveyor 7ft Chain-Belt 26° 52in(132cm) -56in(142cm)
Incline conveyor 8ft Chain-Belt 26° 57in(145cm) -61in(155cm)
Incline conveyor 3ft Chain-Belt 40° 40in(102cm)-40in(102cm)
Incline conveyor 4ft Chain-Belt 40° 46in(117cm) -46in(117cm)
Incline conveyor 5ft Chain-Belt 40° 56in(142cm)-56in142cm)
Incline conveyor 6ft Chain-Belt 40° 63in(160cm) -63in(160cm)
Incline conveyor 7ft Chain-Belt 40° 73in(185cm) -73in(185cm)
Incline conveyor 8ft Chain-Belt 40° 79in(210cm) -79in(201cm)
Discharge height (E3)
Floor ST (E1) / Conveyor FD (E2) to ground 29 in (0,72 m)
Specifications
PTO shaft - Standard specification 540 RPM  1" 3/8 Z6
Minimum PTO HP Requirement - High Speed 30
Auger RPM - Standard High speed 17 RPM
Standard planetary model and ratio configuration 1603 @25,89
Floor Thickness (AR235 grade or equivalent) 5/8 in
Sidewall Thickness (AR235 grade or equivalent) 1/4 in
Flighting Thickness (AR235 grade or equivalent) 5/8 in
Standard knives per auger 6 / 10 optional
Driveline security Shear bolt
Load cell 3
Scale system Option DG500
Machine Weight (empty) - STD configuration 7548 lb (3423 kg)
Utility load capacity 8120 lb (3683 kg)
