Anderson Group S380ST

New Equipment / All Lines / Anderson Group / Mixers / Single Augers / S380ST
Anderson Group S380ST for sale at White's Farm Supply

Double tap to zoom

Anderson Group S380ST for sale at White's Farm Supply

Single Augers S380ST

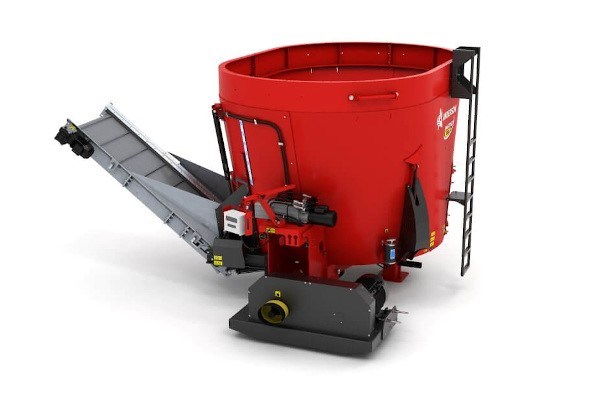

Single auger A380 mixer (side trap discharge) with side trap discharge



Features

The Anderson stationary type single auger A380 mixer (side trap discharge) with side trap discharge, will meet todays needs for high output and intensive use. It has been developed for farms where the footprint of the machine is an important factor. These mixers are compact and highly maneuvrable.

Specs

Capacity
Capacity (no capacity extension) 380 ft3 (10,8 m3)
6 in capacity extension 420 ft3 (11,9 m3)
12 in capacity extension 460ft3 (13 m3)
18 in capacity extension 500 ft3 (14,2 m3)
Number of Auger 1
Dimensions
Length (A) 154 in (3,91 m)
Height (B) no extension 100 in (2,54 m)
6 in capacity extension 106 in (2,69 m)
12 in capacity extension 112 in (2,84 m)
18 in capacity extension 118 in (3 m)
Hay retention ring (additionnal height) 0 in / 3,5 in
Width (C)
Without incline conveyor 101 in (2,57 m)
With incline conveyor (retracted) 117 in (2,97 m)
Incline conveyor operating angle (degrees) 26 @ 39
Lateral distance to discharge inint (D)
Incline conveyor 3ft Chain-Belt 26° 30in(76cm)-34in(86cm)
Incline conveyor 4ft Chain-Belt 26° 34in(86cm) -38in(97cm)
Incline conveyor 5ft Chain-Belt 26° 41in(104cm) -45in(114cm)
Incline conveyor 6ft Chain-Belt 26° 46in(117cm) -50in(127cm)
Incline conveyor 7ft Chain-Belt 26° 53in(135cm) -57in(145cm)
Incline conveyor 8ft Chain-Belt 26° 57in(145cm) -61in(155cm)
Incline conveyor 3ft Chain-Belt 40° 40in(102cm)-40in(102cm)
Incline conveyor 4ft Chain-Belt 40° 46in(117cm) -46in(117cm)
Incline conveyor 5ft Chain-Belt 40° 57in(145cm) -57in(145cm)
Incline conveyor 6ft Chain-Belt 40° 63in(160cm) -63in(160cm)
Incline conveyor 7ft Chain-Belt 40° 73in(185cm) -73in(185cm)
Incline conveyor 8ft Chain-Belt 40° 79in(210cm) -79in(201cm)
Discharge height (E3)
Floor ST (E1) / Conveyor FD (E2) to ground 29 in (0,74 m)
Specifications
PTO shaft - Standard specification 540 RPM  1" 3/8 Z6
Minimum PTO HP Requirement - High Speed 40
Auger RPM - Standard High speed 17 RPM
Standard planetary model and ratio configuration 1603 @25,89
Floor Thickness (AR235 grade or equivalent) 3/4 in
Sidewall Thickness (AR235 grade or equivalent) 1/4 in
Flighting Thickness (AR235 grade or equivalent) 5/8 in
Standard knives per auger 6 / 10 optional
Driveline security Shear bolt
Load cell 3
Scale system Option DG500
Machine Weight (empty) - STD configuration 8890 lb (4032 kg)
Utility load capacity 11 020 lb (4998 kg)
