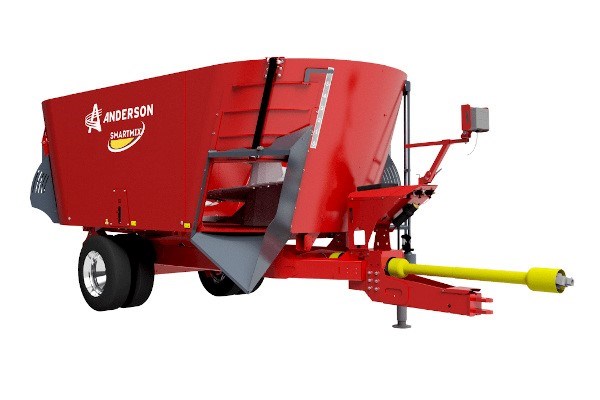

Twin Augers A700ST
The pull type twin auger A700 mixer (side trap discharge) is designed for intensive daily use. These mixers are adaptable depending on the configuration of the operation and the type of farming. The solution for every size farm.
Features
- Capacity 700 ft³ (19.8 m³ ) to 910 ft³ (25.8 m³ )
- HP PTO Requirement in low speed: minimum 100 HP in high speed: minimum 150 HP
- Height of 110 in (2.79 m) to 128 in (3.25 m) with extension
- Unloading material by side trap or front conveyor
- 2 augers with 6 reversible knives each in carbide tungsten (10 knives per auger, optional)
Specs
| Capacity | |
| Capacity (no capacity extension) | 700 ft3 (19.8 m3) |
| 6 in capacity extension | 770 ft3 (21.8 m3) |
| 12 in capacity extension | 840 ft3 (23.8 m3) |
| 18 in capacity extension | 910 ft3 (25.8 m3) |
| Number of Auger | 2 |
| Dimensions | |
| Length (A) | 288 in (7.32 m) |
| Height (B) no extension | 110 in (2.79 m) |
| 6 in capacity extension | 116 in (2.95 m) |
| 12 in capacity extension | 121 in (3.07 m) |
| 18 in capacity extension | 128 in (3.25 m) |
| Hay retention ring (additionnal height) | 0 in / 3,5 in |
| Width (C) | |
| Without incline conveyor | 101 in (2.57 m) |
| With incline conveyor (retracted) | 117 in (2.97 m) |
| Incline conveyor operating angle (degrees) | 26 @39 |
| Outside width of the wheels | 100 in (2.54in(888cm) m) |
| Lateral distance to discharge point (D) | |
| Incline conveyor chain / belt 3 ft at min.26 angle /max 40 | 30-23in at 26º / 27-20in at 40º |
| Incline conveyor chain / belt 4 ft at min. 26 angle /max 40 | 46-50in at 26º / 59-59in at 40º |
| Incline conveyor chain / belt 5 ft at min. 26 angle /max 40 | 53-57in at 26º / 69-69in at 40º |
| Incline conveyor chain / belt 6 ft at min. 26 angle /max 40 | 57-61in at 26º / 76-76in at 40º |
| Incline conveyor chain / belt 7 ft at min. 26 angle /max 40 | 63-67in at 26º / 86-86in at 40º |
| Incline conveyor chain / belt 8 ft at min. 26 angle /max 40 | 67-71in at 26º / 92-92in at 40º |
| Discharge height (E) | |
| Incline conveyor chain / belt 3 ft at min. 26 angle /max 40 | 43-47in at 26º / 53-53in at 40º |
| Floor ST (E1) / Conveyor FD (E2) to ground | 44 in (1.12 m) |
| Specifications | |
| PTO shaft - Standard specification | 1000 RPM 1" 3/8 Z21 |
| PTO shaft - Option specification | 1000 RPM 1"3/4 Z20 54in(888cm)0 RPM 1" 3/8 Z6 |
| 2 speed Gear Box | Optional |
| 2 Speed Gear Box and ratio | C3A-R, 1;1,5 54in(888cm)0 RPM C3A-R, 1,8;2,7 1000 RPM |
| Minimum PTO HP Requirement - Low Speed | 100 |
| Minimum PTO HP Requirement - High Speed | 150 |
| Auger RPM - Low Speed | 27 RPM |
| Auger RPM - Standard High speed | 41 RPM |
| Standard planetary model and ratio configuration | 2003 @25.89 |
| Optionnal Planetary | 2002 @ 13.4 54in(888cm)0 RPM |
| Floor Thickness (AR235 grade or equivalent) | 3/4 in |
| Sidewall Thickness (AR235 grade or equivalent) | 1/4 in |
| Flighting Thickness (AR235 grade or equivalent) | 5/8 in |
| Standard knives per auger | 6 / 10 optional |
| Driveline security | Shear bolt |
| Hydraulic flow requirement | 10-15 US gal/ min 37-56 L/ min |
| Hydraulic pressure | 160-200 bars (2300-2900 psi) |
| Load cell | 4 |
| Scale system | DG500 (standard) |
| Machine Weight (empty) - STD configuration | 15 987 lb (7250 kg) |
| Utility load capacity | 20 300 lb (9206 kg) |
| Axle - Standard specifications | Single |
| Axle - Optional specifications | Tandem |
| Wheels - Standard specifications | 275/70R22.5 (DOUBLE) |
