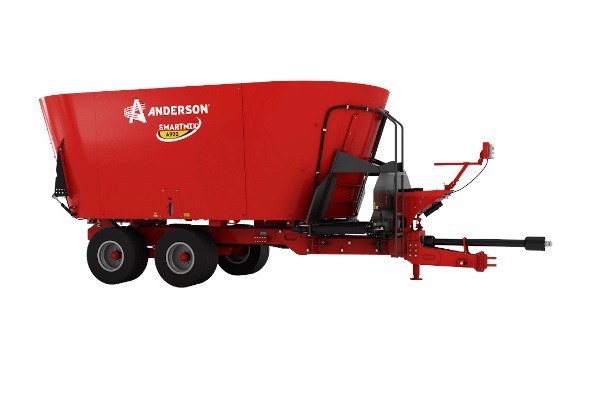

Twin Augers A920FD
Twin Auger Vertical Mixer
Features
- Capacity 920 ft³ (26.1 m³) to 1172 ft³ (33.2 m³).
- Height of 122 in (3.1 m) to 140 in (3.56 m) with extension.
- 2 augers with 8 reversible knives each in carbide tungsten (12 knives per auger, optional)
Specs
| Capacity | |
| Capacity (no capacity extension) | 920 ft3 (26,1 m3) |
| 6 in capacity extension | 1004 ft3 (28,5 m3) |
| 12 in capacity extension | 1088 ft3 (30,8 m3) |
| 18 in capacity extension | 1172 ft3 (33,2 m3) |
| Number of Auger | 2 |
| Dimensions | |
| Length (A) | 314 in (7,98 m) |
| Height (B) no extension | 122 in (3,1 m) |
| 6 in capacity extension | 128 in (3,25 m) |
| 12 in capacity extension | 134 in (3,4 m) |
| 18 in capacity extension | 140 in (3,56 m) |
| Hay retention ring (additionnal height) | 0 in / 3,5 in |
| Width (C) | |
| Without incline conveyor | 113 in (2,87 m) |
| With incline conveyor (retracted) | 125 in (3,18 m) |
| Incline conveyor operating angle (degrees) | 26 @39 |
| Outside width of the wheels | 100 in (2,54in(888cm) m) |
| Lateral distance to discharge point (D) | |
| Incline conveyor chain / belt 3 ft at min.26 angle /max 40 | 23-21in at 26º / 21-18in at 40º |
| Incline conveyor chain / belt 4 ft at min. 26 angle /max 40 | 45-47in at 26º / 54-54in at 40º |
| Incline conveyor chain / belt 5 ft at min. 26 angle /max 40 | 52-54in at 26º / 65-65in at 40º |
| Incline conveyor chain / belt 6 ft at min. 26 angle /max 40 | 56-58in at 26º / 71-71in at 40º |
| Incline conveyor chain / belt 7 ft at min. 26 angle /max 40 | 63-65in at 26º / 81-81in at 40º |
| Incline conveyor chain / belt 8 ft at min. 26 angle /max 40 | 67-69in at 26º / 88-88in at 40º |
| Discharge height (E) | |
| Incline conveyor chain / belt 3 ft at min. 26 angle /max 40 | 41-43in at 26º / 48-48in at 40º |
| Floor ST (E1) / Conveyor FD (E2) to ground | 32in (0,82in(208cm) m) |
| Specifications | |
| PTO shaft - Standard specification | 1000 RPM 1" 3/8 Z21 |
| PTO shaft - Option specification | 1000 RPM 1" 3/4 Z20 |
| 2 speed Gear Box | Option |
| 2 Speed Gear Box and ratio | C3A-R, 1;1,5 1000RPM |
| Minimum PTO HP Requirement - Low Speed | 100 |
| Minimum PTO HP Requirement - High Speed | 150 |
| Auger RPM - Low Speed | 22 RPM |
| Auger RPM - Standard High speed | 33 RPM |
| Standard planetary model and ratio configuration | 2103 @29.9 |
| Optionnal Planetary | 3003 @ 30.24 |
| Floor Thickness (AR235 grade or equivalent) | 3/4 in |
| Sidewall Thickness (AR235 grade or equivalent) | 1/4 in |
| Flighting Thickness (AR235 grade or equivalent) | 5/8 in |
| Standard knives per auger | 8 / 12 optional |
| Driveline security | Shear bolt |
| Hydraulic flow requirement | 10-15 US gal/min 37-56 L/min |
| Hydraulic pressure | 160-200 bars (2300 - 2900 psi) |
| Load cell | 4 |
| Scale system | DG500 (standard) |
| Machine Weight (empty) - STD configuration | 18 117 lb (82in(208cm)35kg) |
| Utility load capacity | 26 680 lb (12100kg) |
| Axle - Standard specifications | Tandem |
| Axle - Optional specifications | N/A |
| Wheels - Standard specifications | 445/45R19,5 |
