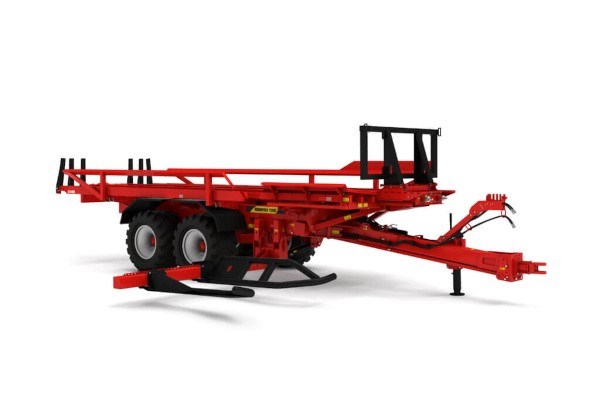

Anderson Group RBM1000

Double tap to zoom

Round Baler Trailer : Overall weight11 025 lb (5000 kg)

Bale
Round bale diameter	Up to 6 ft (1,8 m)
Square bale	n/a
Bale type	Baleage/dry hay/straw
Specifications
Tandem axle	Standard
Tandem axle with brakes	Optional
Self-Steering axle with brakes	Optional
Safety chain	Standard
Self-loading arm design	Tubular round
Able to load a second row of bales	N/A
Tires	550/45-22,5
Caméra (de recul)	Optional
Tractor minimum hydraulic flow	2500 psi (172 bar)
HP requirements	115 HP
Tractor outlets required	6 x 1/2" male quick couplers
PTO Speed/ PTO shaft	N/A
Controls	Tractor's hydraulic circuit
Dimensions
Width - A	8 ft 4 po (2,55 m)
Overall width (inlcuding loading arm)	8 ft 4 po (2,55 m)
Height - B	7 ft 10 po (2,39 m)
Overall height (inlcuding loading arm)	11 ft 11 po (3,64 m)
Bed height - E	4 ft 9 po (1,44 m)
Overall length - D	30 ft 5 po (9,27 m)
Overall weight	11 025 lb (5000 kg)
Empty Weight on tow bar***	1820 lb (825 kg)
Capacity
Round bale 4 ft x 4 ftdiameter (1,2 m x 1,2 m)	10
Round bale 4 ft x 5 ft diameter (1,2 m x 1,5 m)	10
Round bale 4 ft x 6 ft diameter (1,2 m x 1,8 m)	10
Round bale 5 ft x 5 ft diameter (1,5 m x 1,5 m)	8
Round bale 5 ft x 6 ft diameter (1,5 m x 1,8 m)	8
Square bale 3 ft x 3 ft x 8 ft long (90 cm x 90 cm x 2,4 m)	n/a
Square bale 4 ft x 3 ft x 8 ft long (1,2 m x 90 cm x 2,4 m)	n/a
Square bale 4 ft x 4 ft x 8 ft long (1,2 m x 1,2 m x 2,4 m)	n/a
Loading arm lifting capacity	2500 lb (1135 kg)
Total weight including load	42 000 lb (19 000 kg)
