Anderson Group RBMPRO 1400

New Equipment / All Lines / Anderson Group / Trailers / Trailers Round Bales / RBMPRO 1400

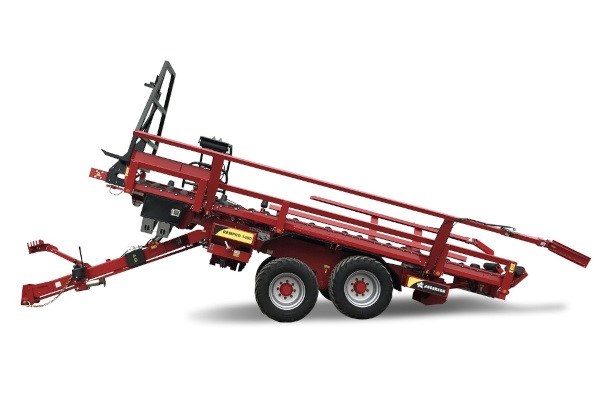

Anderson Group RBMPRO 1400 for sale at White's Farm Supply

Double tap to zoom

Anderson Group RBMPRO 1400 for sale at White's Farm Supply

Trailers Round Bales RBMPRO 1400

The Anderson Group is proud to introduce the world’s first self-loading bale carrier capable of handling efficiently wrapped silage bales.
The RBMPRO series can move nearly twice as many bales as any traditional platform system. It reduces the time spent in the field, the labor, as well as the fuel consumption. This a... + Read More



Features

  • Possibility of collecting bales on their flat or round edge
  • Bale loading speed: 6 minutes for 14 bales
  • Unloading in 45 seconds
  • Fully automated (little operator experience required)
  • Touch screen with self-diagnostic system
  • Danfoss hydraulics
  • Patented design
  • Monitoring of customer statistics (perfect for contractors)

Specs

Bale
Round bale diameter Up to 5 ft (1,5 m)
Square bale n/a
Bale type Baleage/dry hay/straw
Specifications
Tandem axle Standard
Tandem axle with brakes Optional
Self-Steering axle with brakes Optional
Safety chain Standard
Self-loading arm design Tubular round
Able to load a second row of bales Telescopic arm
Tires 550/45-22,5
Caméra (de recul) Standard
Tractor minimum hydraulic flow 2800 psi (190 bar)
HP requirements 130 HP
Tractor outlets required 4 x 1/2" male quick couplersn1 x 3/8" male hydraulic quick coupler (LS)n1 x 3/4" male hydraulic quick couplern1 x 3/4" Female Hydraulic Quick Coupler (Free Return)
PTO Speed/ PTO shaft N/A
Controls Touchscreen display
Dimensions
Width - A 8 ft 4 in (2,55 m)
Overall width (inlcuding loading arm) 8 ft 4 in (2,55 m)
Height - B 12 ft 2 in (3.71m)
Overall height (inlcuding loading arm) 12 pi6 po (3.81m)
Bed height - E 5 pi (1,55 m)
Overall length - D 30 pi 5 po (9,27 m)
Overall weight 13 225 lb (6000 kg)
Empty Weight on tow bar*** 2380 lb (1080 kg)
Capacity
Round bale 4 ft x 4 ftdiameter (1,2 m x 1,2 m) 10 in two rows side by siden13 or 14 in three pyramidal rows (dry or straw)1
Round bale 4 ft x 5 ft diameter (1,2 m x 1,5 m) 10 in two rows side by siden13 or 14 in three pyramidal rows (dry or straw)1
Round bale 4 ft x 6 ft diameter (1,2 m x 1,8 m) n/a
Round bale 5 ft x 5 ft diameter (1,5 m x 1,5 m) 8 in two rows side by siden10 or 11 in three pyramidal rows (dry or straw)1
Round bale 5 ft x 6 ft diameter (1,5 m x 1,8 m) n/a
Square bale 3 ft x 3 ft x 8 ft long (90 cm x 90 cm x 2,4 m) n/a
Square bale 4 ft x 3 ft x 8 ft long (1,2 m x 90 cm x 2,4 m) n/a
Square bale 4 ft x 4 ft x 8 ft long (1,2 m x 1,2 m x 2,4 m) n/a
Loading arm lifting capacity 2500 lb (1135 kg)
Total weight including load 42 000 lb (19 000 kg)
