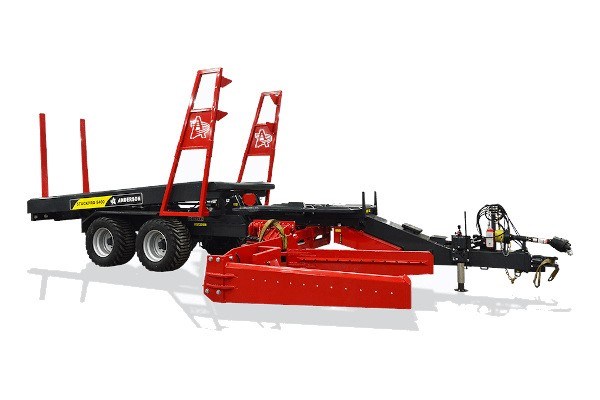

Trailers Square Bales STACKPRO5400
Both models of the Stackpro series are trailers that allow the collection and stacking of square bales for farmers wanting to maximize the time spent on logistics throughout the year. Their robustness allows them to endure the most extreme conditions and can handle almost all types and sizes of bales.
The only diffe... + Read More
Features
- Unique adjustable self-loading heavy duty clamp capable of handling bales up to 1100 kg (2400 lbs) without damaging twine.
- Heavy duty built provides faster bale pickup and also speed with which you can make contact with the bale
- Compatible with any type of tractor
- Automated touchscreen , allows speed and ease of use from the first minutes of operating the machine
- Tracking the number of bales per client (ideal for custom operators & contractors)
- Fully electronically control panel, weighs bales and total load.
- Bale weighing system + -2.5% margin of error
- Touchscreen with self-diagnostic
- Data export to Excel via USB key
- Rugged frame and steel bed supporting wet and dry bales.
- Camera for movement in transport and unloading mode
- Tandem axle makes for stable and optimal performance of the machine.
- Two rear clamps support the complete weight of the load when lowering down the stack and retreiving bales.
- Designed with lubrication-free pivot system for moving parts, the Stackpro5400 is virtually maintenance free.
- High floatation tires.
- Hydraulic unloading and stacking system.
- Closed hydraulic circuit (no contamination)
- Variable displacement pump by PTO 1000 RPM socket
Specs
| Bale | |
| Round bale diameter | n/a |
| Square bale | Up to 51 in x 48 in (130 cm x 120 cm) |
| Bale type | Baleage/dry hay/straw |
| Specifications | |
| Tandem axle | Standard |
| Tandem axle with brakes | Optional |
| Self-Steering axle with brakes | Optional |
| Safety chain | Standard |
| Self-loading arm design | Hydraulic clamp |
| Able to load a second row of bales | Platform |
| Tires | 550/45-22,5 |
| Caméra (de recul) | Standard |
| Tractor minimum hydraulic flow | 2800 psi (190 bar) |
| HP requirements | 150 HP |
| Tractor outlets required | 5 x 1/2" male quick couplersn1 x 3/4" Female Hydraulic Quick Coupler (Free Return)n1 x 1/2" male quick hydraulic coupler if steering axle option |
| PTO Speed/ PTO shaft | 1000 RPM/1 3/4-Z20 |
| Controls | Touchscreen |
| Dimensions | |
| Width - A | 8 ft 4 in (2,55 m) |
| Overall width (inlcuding loading arm) | 8 ft 4 in (2,55 m) |
| Height - B | 12 ft 8 in (3,86 m) |
| Overall height (inlcuding loading arm) | 12 pi 8 po (3,86 m) |
| Bed height - E | 6 pi 1 po (1,85 m) |
| Overall length - D | 35 pi 7 po (10,85 m) |
| Overall weight | 22 400 lb (10 160 kg) |
| Empty Weight on tow bar*** | 3650 lb (1 655 kg) |
| Capacity | |
| Round bale 4 ft x 4 ftdiameter (1,2 m x 1,2 m) | n/a |
| Round bale 4 ft x 5 ft diameter (1,2 m x 1,5 m) | n/a |
| Round bale 4 ft x 6 ft diameter (1,2 m x 1,8 m) | n/a |
| Round bale 5 ft x 5 ft diameter (1,5 m x 1,5 m) | n/a |
| Round bale 5 ft x 6 ft diameter (1,5 m x 1,8 m) | n/a |
| Square bale 3 ft x 3 ft x 8 ft long (90 cm x 90 cm x 2,4 m) | 18 |
| Square bale 4 ft x 3 ft x 8 ft long (1,2 m x 90 cm x 2,4 m) | 12 |
| Square bale 4 ft x 4 ft x 8 ft long (1,2 m x 1,2 m x 2,4 m) | 8 |
| Loading arm lifting capacity | 2400 lb (1089 kg) |
| Total weight including load | 42 000 lb (19 000 kg) |
