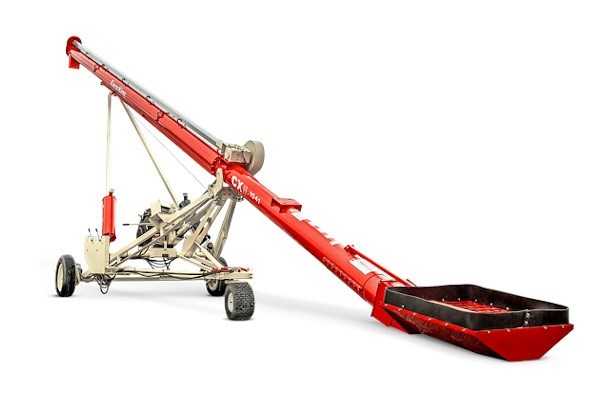

Farm King CX2-1041

UNDERCARRIAGE
The wide stance of the undercarriage improves stability and is constructed with square tubes to enhance strength and durability. In addition to being well balanced, the undercarriage features automotive-type hubs and bearings that improve ease of handling.

TOP DRIVE
The top drive is housed in a sealed grease bath and features a chain-tightener. The components in the sealed oil bath are resistant to heat, dust, debris and moisture, reducing maintenance and enhancing the longevity of the chain and sprockets.

TRANSPORT
The sturdy lightweight assembly allows the conventional auger to be easily transported. The trailing swivel wheels can be raised hydraulically to allow for increased turning radius as well as smooth transitions over uneven terrain.

ENGINE MOUNT
The new engine mount has no moving parts for easy set up. The engine is leveled by the belt guard system which ensures perfect belt tension at every auger position - the separate leveling rod has been eliminated.

INTAKE
The intake end of the auger flighting is supported by a wooden, self lubricating bushing, which is highly resistant to dirt contamination and is maintenance free. A narrow safety guard and removable clevis hitch improve access to bins with small auger ports.

WHEEL SPINDLES
The wheel spindles are now a bolt-on style, allowing easy set up and replacement. This also helps facilitate the auger mover installation.

OPTIONS

DRIVE OPTIONS
Several drive options are available, including direct PTO, belt-drive PTO, gas engine drive, and electric motor drive matched to a belt or direct drive.

POLY SPOUT & HOPPER
Flexible poly spout for accurate bin filling is optional. Also optional is a poly hopper to minimize spillage.

AUGER MOVER
The completely redesigned mover incorporates power steering, hydraulic scissor lift for the intake, sport tread tires, hydraulic winch for auger height adjustment, improved engine mount and leveling systems and longer reach on the intake tube.
