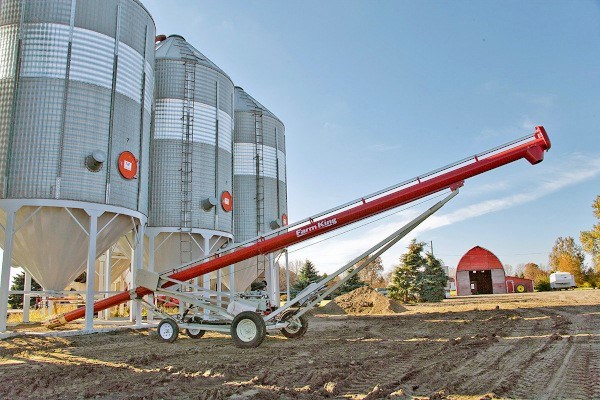

Conventional Auger / Truck Loader 1336

Farm King has been building a wide range of grain handling equipment for decades. These grain augers have endured rigorous testing on farms across North America and have been refined to represent durability, reliability and value. Several sizes and lengths are available, with various drive options and numerous built-in features.



Features

UNDERCARRIAGE
The wide stance of the undercarriage improves stability and is constructed with square tubes to enhance strength and durability. In addition to being well balanced, the undercarriage features automotive-type hubs and bearings that improve ease of handling. Reliable safety clutch winches are included.

INTAKE
The double flighting intake increases grain flow. A narrow safety guard and removable clevis hitch improve access to bins with small auger ports.

TOP DRIVE
The top drive is housed in a sealed oil bath and features a chain-tightener. The components in the sealed oil bath are resistant to heat, dust, debris and moisture, reducing maintenance and enhancing the longevity of the chain and sprockets.

DRIVE OPTIONS
Several drive options are available, including direct PTO, belt-drive PTO, gas engine drive, and electric motor drive matched to a belt or direct drive.

ROLLER CHAIN
The top drive uses #60 roller chain on most 8" models, while #80 roller chain is used on the 10" and 13" models.

ENGINE MOUNT
Belt-drive engine models are equipped with a self-leveling motor mount and a self-tensioning belt system. Belt guards are included.
Reliable safety clutch winches are included.

Specs

Model 1336
Tube width 13"
Tube length 36'
Wheel track 7' 5"
Belt drives Triple
Tube (gauge)
- Top
- Center
- Bottom
12
-
12
Flighting 1/4"
Flighting shaft 2-3/8"
Drive line 1-1/2"
HP gasoline
(3450 RPM)
- Belt pulley
30
3-1/2"
HP electric (1725 RPM)
- Belt pulley
- Direct pulley		 22
6"
3-1/2"
