Farm King MDN4

New Equipment / All Lines / Farm King / Hay Tools / Disc Mower / MDN4

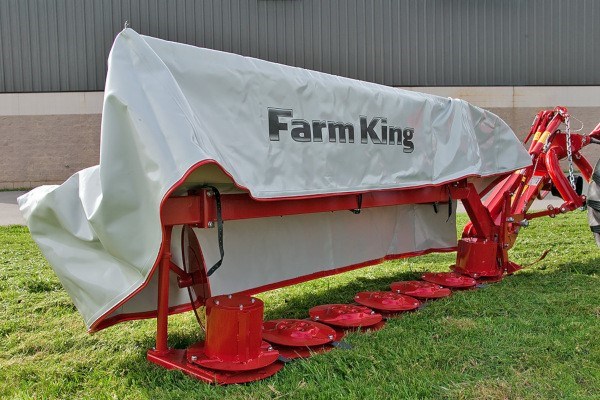

Farm King MDN4 for sale at White's Farm Supply

Double tap to zoom

Farm King MDN4 for sale at White's Farm Supply

Disc Mower MDN4

Cutting discs and blades are easily accessible by removing six bolts and the sturdy cover to reveal the inner workings of each disc assembly. Tractors ranging in horsepower from 40 to 50 can operate the three exclusive mower sizes with ease. Two cone discs are located on each end of the disc assembly to assist in swath formation and shaping.



Features

FREE-SWINGING BLADE
The MDN 4, 5, 6 and 7 come standard with 15-inch discs and 4-inch long blades with a 3-inch blade overlap. The free-swinging blades create a precise cut when reaching rotation speeds of 3000 rpm.

TRANSPORTATION
Transportation is effortless with the help of a single acting hydraulic cylinder that maneuvers the mower precisely in a matter of seconds. The transport mode features an automatic locking mechanism. Simply pull on the rope located near the 3-pt hitch assembly and the locking mechanism is deactivated to lower the mower into position.

HYDRAULICS
A single acting cylinder allows the operator to control the position of the mower from the seat of the tractor.

Specs

Model MDN4
Number of Discs/Blades 4/8
Working Width 5' 5" (1.65 m)
Blade Rotation Speed 3000 RPM at 540 G'
3-Point Hitch Cat. I / II
PTO 540 RPM
Tractor Requirements 35 hp (25 kW)
Weight 903 lb (410 kg)
