Farm King 1530

New Equipment / All Lines / Farm King / Landscaping Equipment / Mowers and Cutters / 15' Flex-Wing Rotary Cutter / 1530

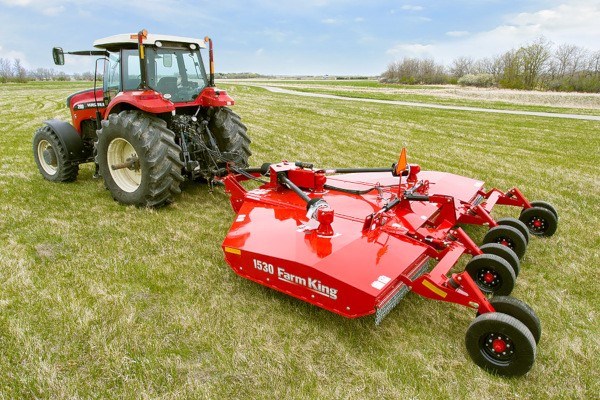

Farm King 1530 for sale at White's Farm Supply

Double tap to zoom

Farm King 1530 for sale at White's Farm Supply

15' Flex-Wing Rotary Cutter 1530

With a class-leading 7" blade overlap for a thorough cut and a working range of +/- 25°, this machine is ideal for cutting deep grassy ditches and trenches.



Features

DECKS
The decks on this heavy-duty cutter are manufactured using 7 gauge steel. A deck protection ring minimizes stress on the deck while the stump jumper protects the mower deck and allows the assembly to glide over uneven terrain. The streamline deck design maintains strength and prevents buildup. Standard equipment such as a single chain guard attached to the entire deck limits the possibility of flying debris.

HEAT-TREATED BLADES
Each blade is heat-treated to enhance rigidity, while the heavy-duty gearbox is designed to be rugged and durable. The access panel located on the deck makes it easy to inspect, clean or replace the blades if necessary. The blades also have an industry-leading 7" overlap to make sure you get the best cut the first time.

SUSPENSION
The suspension on the Farm King 1530 individually isolates each wheel assembly from the machine which reduces road vibration and terrain roughness.

CUTTING WIDTH & TRANSPORT
The Farm King 1530 features a 186" cutting width and also folds down to a convenient 96" for transportation.

OPTIONAL EQUIPMENT
Check out these options to enhance the operation of your Farm King 1530 Rotary Cutter: Light kit, Walking tandem, Double axle, Laminated or aircraft tires.

Specs

Model 1530
Width, working 186 in (4.7 m)
Width, overall 194 in (4.9 m)
Width, transport 98 in (2.5 m)
Height, transport 92 in (2.3 m)
Working range +/- 25°
Cutting height 2 to 15 in (51 to 381 mm)
Weight 5900 lb (2676 kg)
Tongue weight 2100 lb (953 kg)
Tractor hp requirement, min. 65 hp
Gearbox hp, splitter / wings 250 hp / 190 hp
Gearbox speed 540 RPM                                    /   1000 RPM
Wing blade tip speed 16,481 ft/min (5023 m/min)     /   16,737 ft/min (5101 m/min)
Center blade tip speed 16,197 ft/min (4937 m/min)    /     15,802 ft/min (4816 m/min)
Blade overlap 7 in (177 mm)
Blade 0.5 x 4, Uplift
Deck material thickness 0.179 in (7 Ga) (4.5 mm)
Side skirt thickness 0.25 in (6.4 mm)
Side skirt Reversible and replaceable
Hitch Cat II clevis
Single chain guard Standard equipment
Deck protection ring Standard equipment
Stump jumper Standard equipment
Double axle Optional equipment
