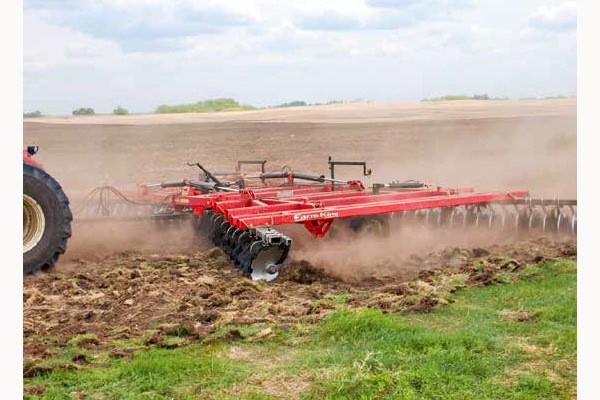

Tandem Disc 8700
THE FARM KING 8700 IS BUILT TO MANAGE HEAVY RESIDUE IN CORN, STUBBLE AND BEETS OR TO TURN PASTURE OR HAY FIELDS.
With gangs torqued to 3200 ft-lb and T2-215 bearings the 8700 will withstand almost anything. A full floating hitch creates a smooth level finish and prevents gouging.
Features
STONE-FLEX HANGERS
Stone-flex hangers are standard equipment on Farm King tandem discs. They allow gangs to flex slightly side-to-side and up/ down to provide protection to the gang assemblies when impact is encountered while at the same time maintaining working depth.
BLADE SCRAPERS
Farm King model 395/ 4490/ 4590 tandem discs feature one piece, 4" wide blade scrapers made of carbon steel for long wear life. Models 6650/6650NT/8700 models use wide-pan style blade scrapers which are designed for larger sized blades: 26" and up. These scrapers contact lower down on the disc blades and scrape more surface area of the blade to provide more effective cleaning and prevent sticky material from building up on the blades. Scraper blades (tips) are laser cut from wear-resistant boron alloy steel and are replaceable.
TRANSPORT
Standard hydraulic lockout valves prevent accidental operation of either the lift or wing cylinders when the disc is being transported.
STAGGERED FRONT GANGS
Staggered, overlapping front gangs are standard (except for Model 395) and ensure that all soil at the center of the disc is cut out cleanly and evenly eliminating the need for a center shank or bulk buster.
REMOVABLE SPINDLE AXLES
Farm King tandem discs are built with maintenance concerns in mind. All spindle axles are designed for easy removal and maximum strength. Each spindle is bolted into a sleeve and can be removed by simply removing the bolt and pulling out the axle. This will save valuable time if repairs to a tire are needed.
STEEL FABRICATED SPOOLS
Farm King discs feature fabricated steel half and full spools. Unlike ductile cast spools, steel spools can withstand far greater "shock loads" from rocks or stumps thereby eliminating spool breakage. Compressed to maximum density prior to assembly, Farm King’s fabricated spools ensure the gang will not shift and become loose.
REPHASING HYDRAULIC LIFT SYSTEM
Depth stop segments are supplied with each disc to ensure continuous same-depth tilling. Each of the wing frames can be easily leveled using a conveniently located eye-bolt adjustment. Cylinder arms on each of the rockshafts are equipped with replaceable hardened wear bushings for prolonged trouble free performance.
FURROW FILLER BLADES
In order to get the most uniform and consistent field finish, Farm King tandem discs have furrow filler blades as standard equipment. Furrow filler blades along with full sized blades on the gang assemblies create a uniform, well worked field.
TANDEM WALKING BEAM AXLE
Standard equipment on the main frame, each walking beam pivots on greaseable bushings to improve weight distribution and stability when being transported.
LARGE GANG SHAFT
All Farm King discs feature a large 1-15/16" diameter, high carbon steel gang shaft. This gang shaft along with Farm King’s steel fabricated spools allows the gang assembly to be torqued at the factory to 3200 ft-lb.
INTERLOCKING HALF SPOOL
This exclusive Farm King feature ensures that each bearing sleeve interlocks with adjoining half spools to provide positive drive to blades and reduces possibility of blades turning on the gang shaft. Optional with 26" blades, standard with 28" and larger (available on 10.5" and 12" spacing only).
Specs
| Model | 8700 | 8700 |
| Blade Spacing | 10.5" (267 mm) | 12" (305 mm) |
| Width, working* | 25', 26' 6", 29', 32', 35' 6", 38’ 6” (7.6 - 11.7 m) | 24', 26', 30' 6", 36', 6", 38’ 6” (7.3 - 11.7 m) |
| Width, transport | 17.5' (4.4 m) | 17.5' (4.4 m) |
| Height, transport | 12' 7" to 19' 1" (3.84 to 5.82 m) | 10' 9” - 17’ 5” (3.3 to 5.3 m) |
| Weight | 700 lb/ft Class (318 kg) | 700+ lb/ft Class (1042 kg/m) |
| Horsepower required | 7.0 - 9.0 hp/ft (17 - 22 kW/m)† | |
| Structure | ||
| Frame | Welded, 8” x 4” (203 x 102 mm) tubular steel frame | |
| Bearings | T2-215 series trunnion mounted | |
| Gang angle | 21° front / 19° rear | |
| Gang shaft | 1-15/16" (49 mm) high carbon steel, torqued to 3200 ft/lb (4339 Nm) | |
| Blades | ||
| Blade sizes, notched/smooth | 26" x 5/16" (660 x 8 mm) (N) 26" x 3/8" (660 x 9 mm) (P,N) 28" x 3/8" (711 x 9 mm) (P,N) |
28" x 3/8" (711 x 9 mm) (N) |
| Features | ||
| Tires, main frame | (4) FS24 380/55R16.5 | |
| Tires, wing frame | (4) 12.5L x 15 FI (4) FS24-380/55R16.5 - OPTN |
|
| Depth control | 3-cylinder series system c/w depth stop segments OPTN: Hydraulic Single Point Depth Control |
|
| Hitch | Auto-leveling, full floating hitch | |
* 8700 w/24" blades
† Depends on working depth, soil type, field speed, etc.
