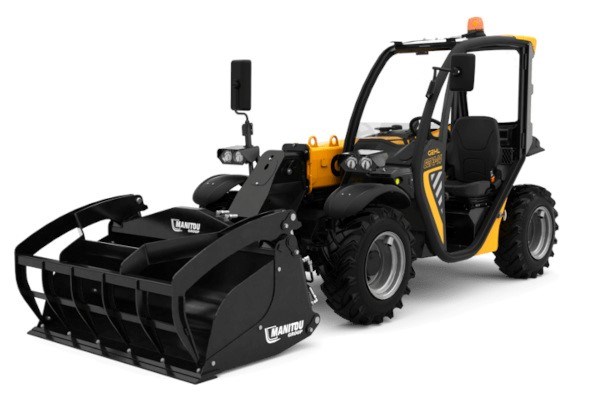

GCT 3-14
A cost-effective, multi-purpose machine designed to save you both time and money, the GCT 3-14 Telescopic Handler combines lift with height to deliver versatility on the job site. Offering 2,200lbs of lift capacity (for more lift, see the GCT 3-14+), this machine can lift, move, and place pallets of bricks, bales of hay, or whatever else your work demands. Designed for tough landscaping conditions or unpredictable environments like equestrian centers, the GCT 3-14 is a lightweight, ultra-compact machine that boasts all-terrain capabilities. It's built to go off-road, get in and out of tight spaces, and brave the path less taken. And with optional accessories like an automatic radiator cleaning system or tires with differing profiles, plus the ability to easily transport on a small trailer, this machine adapts to anything your workday throws at you—and gets it done right.
Max. capacity: 2200 lb
Max. lifting height: 14 ft 1 in
Max. outreach: 8 ft 7 in
I.C. Engine power rating: 35.10 Hp
Features
Key Features
- Multi-Function Joystick on Floating Armrest
- Automatic Parking Brake
- Polycarbonate Roof Window, FOPS Level 1
- Universal Skid Steer Attachment Quick Attach
- Enhanced Fork Tilt
- Battery Cut-Off
| Capacities | |
| Max. capacity | 2200 lbs |
| Max. lifting height | 14 ft 1 in |
| Max. outreach | 8 ft 7 in |
| Reach at max. height | 3 ft 3 in |
| Breakout force with bucket | 1880 daN |
| Weight and dimensions | |
| Shipping mass (min / max) | 5622 lbs / 6063 lbs |
| Ground clearance | 11 in. |
| Wheelbase | 7 ft |
| Overall length to carriage (with hitch) | 11 ft 5 in |
| Front Overhang | 2 ft 6in |
| Overall width | 4 ft 11 in |
| Overall cab width | 2 ft 2 in |
| Overall height | 6 ft 4 in |
| Tilt-down angle | 116° |
| Tilt-up angle | 23° |
| External turning radius (over tyres) | 8 ft 7 in |
| Standard tyres | CAMSO - MPT 552 - 10.0/75-15.3 124A8 |
| Performances | |
| Lifting | 8.80 s |
| Lowering | 7 s |
| Extension | 6.40 s |
| Retraction | 4.30 s |
| Crowd | 3.40 s |
| Dump | 2.60 s |
| Engine | |
| Engine brand | Yanmar |
| Engine norm | Stage V / Tier 4 Final |
| Engine model | 3TNV88C-DMU |
| Number of cylinders - Capacity of cylinders | 3 - 100 in³ |
| I.C. Engine power rating - Power (kW) | 35.10 Hp / 26.20 kW |
| Max. torque / Engine rotation | 105 Nm @1950 rpm |
| Drawbar pull (Laden) | 2000 daN |
| Reversible fan | Option |
| Engine cooling system | 3 radiators (water + hydraulic oil + fuel) |
| Transmission | |
| Transmission type | Hydrostatic |
| Number of gears (forward / reverse) | 2 / 2 |
| Max. travel speed | 16 mph |
| Differential lock | Limited slip differential on front & rear axles |
| Parking brake | Automatic negative parking brake |
| Service brake | Hydraulic servo brake |
| Hydraulics | |
| Hydraulic pump type | Gear pump |
| Hydraulic flow / Pressure | 13 US gpm - 3408 PSI |
| Flow sharing distributor | Standard |
| Tank Capacities | |
| Hydraulic oil | 10 US gal |
| Fuel tank | 9 US gal |
| Noise and Vibration | |
| Noise at driving position (LpA) tested following NF EN 12053 norm | 76 dB |
| Environmental noise (LwA) | 104 dB |
| Vibration to whole hand/arm | < 2.50 m/s² |
| Miscellaneous | |
| Safety cab homologation | Cabin ROPS - FOPS Level 1 |
| Controls | Joystick |
