Gehl GCT 3-14+

New Equipment / All Lines / Gehl / Telescopic Handlers / Construction Telehandlers / GCT 3-14+

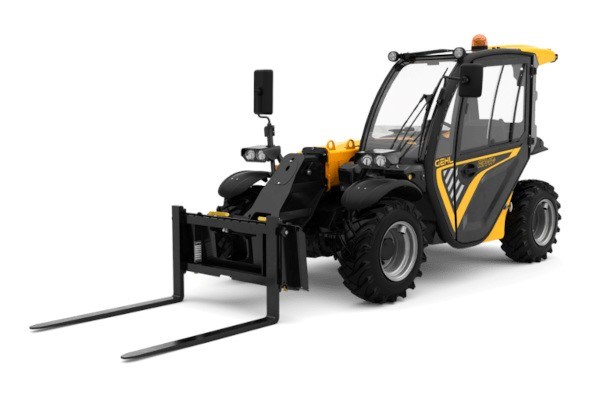

Gehl GCT 3-14+ for sale at White's Farm Supply

Double tap to zoom

Gehl GCT 3-14+ for sale at White's Farm Supply

Construction Telehandlers GCT 3-14+

Max. capacity: 2650 lbs
Max. lifting height: 14 ft 1 in
Max. outreach: 8 ft 7 in
I.C. Engine power rating: 35.10 Hp



Features

A cost-effective, multi-purpose machine designed to save you both time and money, the GCT 3-14+ Telescopic Handler combines lift with height to deliver versatility at the job site. Offering 2,650lbs of lift capacity, this machine can lift, move, and place pallets of bricks, bales of hay, or whatever else your work demands. Designed for tough landscaping conditions or unpredictable environments such as equestrian centers, the GCT 3-14+ is a lightweight, ultra-compact machine that boasts all-terrain capabilities. It's built to go off-road, get in and out of tight spaces, and brave the path less taken. And with optional accessories like an automatic radiator cleaning system or tires with differing profiles, plus the ability to easily transport on a small trailer, this machine adapts to anything your workday throws at you—and gets it done right.

Specs

Capacities
Max. capacity 2650 lbs
Max. lifting height 14 ft 1 in
Max. outreach 8 ft 7 in
Reach at max. height 3 ft 3 in
Breakout force with bucket 1880 daN
Weight and dimensions
Shipping mass (min / max) 5952 lbs / 6393 lbs
Ground clearance 11 in.
Wheelbase 7 ft
Overall length to carriage (with hitch) 11 ft 5 in
Front Overhang 2 ft 6in
Overall width 4 ft 11 in
Overall cab width 2 ft 2 in
Overall height 6 ft 4 in
Tilt-down angle 116°
Tilt-up angle 23°
External turning radius (over tyres) 8 ft 7 in
Standard tyres CAMSO - MPT 552 - 10.0/75-15.3 124A8
Performances
Lifting 8.80 s
Lowering 7 s
Extension 6.40 s
Retraction 4.30 s
Crowd 3.40 s
Dump 2.60 s
Engine
Engine brand Yanmar
Engine norm Stage V / Tier 4 Final
Engine model 3TNV88C-DMU
Number of cylinders - Capacity of cylinders 3 - 100 in³
I.C. Engine power rating - Power (kW) 35.10 Hp / 26.20 kW
Max. torque / Engine rotation 105 Nm @1950 rpm
Drawbar pull (Laden) 2000 daN
Reversible fan Option
Engine cooling system 3 radiators (water + hydraulic oil + fuel)
Transmission
Transmission type Hydrostatic
Number of gears (forward / reverse) 2 / 2
Max. travel speed 16 mph
Differential lock Limited slip differential on front & rear axles
Parking brake Automatic negative parking brake
Service brake Hydraulic servo brake
Hydraulics
Hydraulic pump type Gear pump
Hydraulic flow / Pressure 13 US gpm - 3408 PSI
Flow sharing distributor Standard
Tank Capacities
Hydraulic oil 10 US gal
Fuel tank 9 US gal
Noise and Vibration
Noise at driving position (LpA) tested following NF EN 12053 norm 76 dB
Environmental noise (LwA) 104 dB
Vibration to whole hand/arm < 2.50 m/s²
Miscellaneous
Safety cab homologation Cabin ROPS - FOPS Level 1
Controls Joystick
