Gehl RS6-34 GEN:3

New Equipment / All Lines / Gehl / Telescopic Handlers / Construction Telehandlers / RS6-34 GEN:3

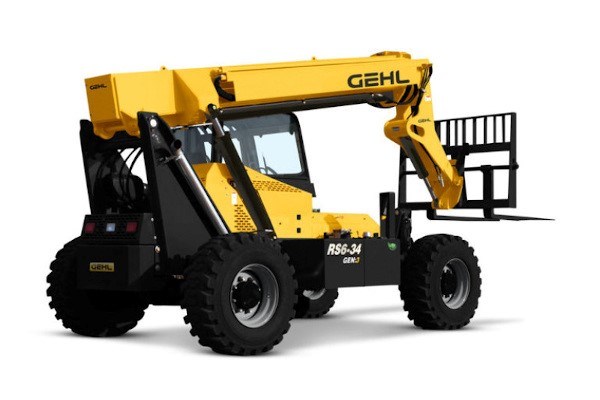

Model Photo

RS6-34 GEN:3

The RS6-34 GEN:3 has a unique reach to its RS brothers and sisters in the lineup. With a 34' maximum lift and 6,000lb lift capacity, this Telescopic Handler is ready to serve you and its response time will outshine any coworker you have. Push the power to its maximum effort and get the job done the way you need, because this machine Works Like You.

Max. capacity:  6000 lb
Max. lifting height:  34 ft 3 in
Max. outreach:  23 ft
I.C. Engine power rating:  74 Hp



Features

Key Features

  • Four-wheel Drive/Four-wheel steer
  • Transportable at 15,000 lbs.
  • Frame leveling 10° left / 10° right
  • Ideal rental product for jobsites up to three stories
Capacities
Max. capacity6000 lbs
Max. lifting height34 ft 3 in
Max. outreach23 ft
Weight and dimensions
Overall length to carriage16 ft
Length to face of forks16 ft 1 in
Overall width7 ft 10 in
Overall height7 ft 9 in
Wheelbase9 ft 2 in
Ground clearance14 in
External turning radius12 ft 6 in
Unladen weight15102 lbs
Standard tyres15 x 19.5
Frame levelling longitudinal +/-10 °
Engine
Engine brandDeutz
Engine normStage IV / Tier 4 Final
Engine modelTD 3.6 L4
I.C. Engine power rating - Power (kW)74 Hp / 55 kW
Max. torque / Engine rotation243 ft/lbs @ 2500 rpm
Transmission
Transmission typeTorque Converter with powershift
Number of gears (forward / reverse)3 / 3
Max. travel speed18 mph
Parking brakeSAHR
Service brakeWet disc brakes
Axle ManufacturerDana
Hydraulics
Hydraulic pump typeGear pump
Hydraulic flow / Pressure29 US gpm-3002 PSI
Tank capacities
Hydraulic oil29 US gal
Fuel tank29 US gal
Miscellaneous
Steering wheels (front / rear)2 / 2
Drive wheels (front / rear)2 / 2
Safety cab homologationROPS/FOPS
ControlsSingle Joystick FNR
