Gehl RS8-44 M74

New Equipment / All Lines / Gehl / Telescopic Handlers / Construction Telehandlers / RS8-44 M74

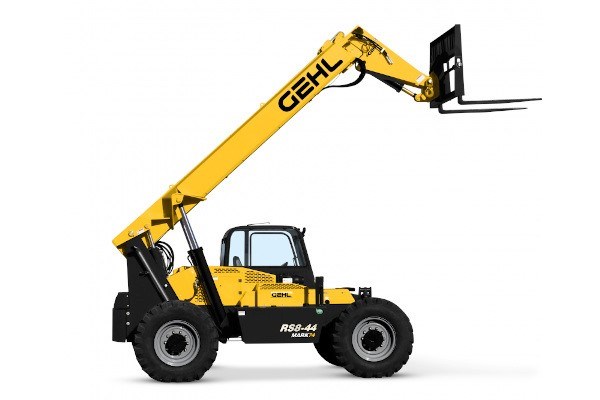

Model Photo

RS8-44 M74

Sick of unexpectedly running out of DEF on the jobsite or having to stop to top it off? We know you are. The Mark74 series of the RS Telescopic Handlers is perfect match for your construction site. Get the reach and lift you need with less hassle to the driver. With unmatched visibility and superior comfort, this machine "Works Like You."

Max. capacity:  8000 lb
Max. lifting height:  44 ft
Max. outreach:  30 ft 5 in
I.C. Engine power rating:  74 Hp



Features

Key Features

  • No DEF or DPF needed
  • Simple F-N-R joystick operation
  • 360° operator visibility
  • 4-wheel drive/4-wheel steer
Capacities
Max. capacity8000 lbs
Max. lifting height44 ft
Max. outreach30 ft  5 in
Weight and dimensions
Overall length to carriage19 ft 10 in
Length to face of forks19 ft 1 in
Overall width8 ft 2 in
Overall height7 ft 8 in
Wheelbase10 ft
Ground clearance16 in
Overall cab width2 ft 9 in
Tilt-up angle12 °
Tilt-down angle112 °
External turning radius13 ft 8 in
Unladen weight23501 lbs
Standard tyres13 x 24
Frame levelling longitudinal +/-10 °
Engine
Engine brandDeutz
Engine normStage IV / Tier 4 Final
Engine modelTCD 3.6 L4
Power (kW)55 kW
Max. torque / Engine rotation288 ft/lbs @ 1300 rpm
Transmission
Transmission typeTorque Converter with powershift
Number of gears (forward / reverse)4 / 3
Max. travel speed15 mph
Parking brakeSAHR
Service brakeWet disc brakes
Axle ManufacturerDana
Hydraulics
Hydraulic pump typeGear pump
Hydraulic flow / Pressure41 US gpm-3002 PSI
Tank capacities
Hydraulic oil31 US gal
Fuel tank47 US gal
Miscellaneous
Steering wheels (front / rear)2 / 2
Drive wheels (front / rear)2 / 2
Safety cab homologationROPS/FOPS
ControlsSingle Joystick FNR
