Gehl TH10-55 M74

New Equipment / All Lines / Gehl / Telescopic Handlers / Construction Telehandlers / TH10-55 M74

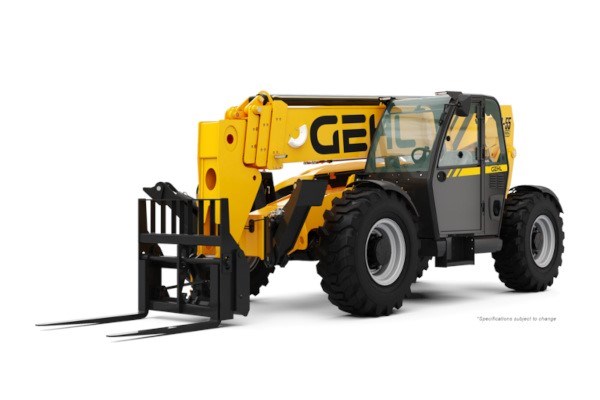

Model Photo

TH10-55 M74

Working on a low-speed job site where stability, reach, and power are top priorities for your machinery? Then the TH10-55 M74 is the machine you're looking for. It has the power that demanding jobs require but without the added stress and expense of having to maintain DEF fluid levels. Offering 10,000 lbs. of lifting capacity with a long boom, this Telescopic Handler is perfect for staging bricks and bulky loads of lumber on construction sites. And it can move at all boom levels to facilitate aligning of material positioning thanks to its upgraded stabilization system. Still interested in avoiding DEF fluid costs without sacrificing the strength you depend on? Then it's time to let the TH10-55 M74 do what it was built for; help you finish tough jobs in rough environments with less effort.

Max. capacity:  10000 lb
Max. lifting height:  55 ft 7 in
Max. outreach:  42 ft 3 in
I.C. Engine power rating:  74 Hp



Features

Key Features

  • SUPERVIEW cab design for increased line of sight to forks and load
  • Simple F-N-R joystick mounted to the seat for ease of use and operator comfort
  • digital display with 50 operator comfort
  • Auxiliary hydraulics and outriggers are standard
  • No DEF or DPF systems
  • high visibility orange seat belt to verify operator use
  • stability system for machine re-position within restricted range
Capacities
Max. capacity10000 lb
Max. lifting height55 ft 7 in
Max. outreach42 ft 3 in
Weight and dimensions
Overall length to carriage21 ft
Overall length (with forks)25 ft
Overall width8 ft 4 in
Overall height8 ft 6 in
Wheelbase11 ft 6 in
Ground clearance1 ft 7 in
Overall cab width3 ft 1 in
Tilt-up angle34 °
Tilt-down angle96 °
External turning radius12 ft 9 in
Overall weight30300 lb
Tires typePneumatic
Forks length / width / section48 in x 5 in / 2 in
Frame leveling longitudinal +/-10 °
Performances
Lifting16 s
Lowering11 s
Extension18 s
Retraction16 s
Crowd4 s
Dump6 s
Engine
Engine brandDeutz
Engine normTier 4 final
Engine modelTCD 3.6 L4
Number of cylinders / Capacity of cylinders4 - 220 in³
I.C. Engine power rating - Power (kW)74 Hp / 55 kW
Max. torque / Engine rotation288 ft/lbs @ 2300 rpm
Transmission
Transmission typePowershift
Number of gears (forward / reverse)5/3
Max. travel speed19 mi/h
Parking brakeSAHR
Service brakeWet disc brakes
Hydraulics
Hydraulic pump typeAxial piston
Hydraulic flow / Pressure40 US gpm-4000 PSI
Tank capacities
Engine oil2 US gal
Hydraulic oil42 US gal
Fuel tank38 US gal
Noise and vibration
Noise at driving position (LpA)80 dB
Miscellaneous
Steering wheels (front / rear)2/2
Drive wheels (front / rear)2/2
ControlsJoystick
