Gehl TH12-42

New Equipment / All Lines / Gehl / Telescopic Handlers / Construction Telehandlers / TH12-42

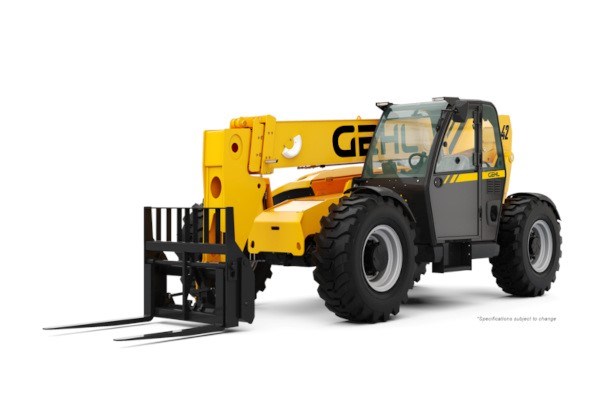

Model Photo

TH12-42

For operators in industrial settings where lifting capacity is more important than vertical reach, the TH12-42 Telescopic Handler is exactly what you need and just what you're looking for. Designed for lifting heavy loads, this machine features both a longer wheelbase and a boom made with high-strength steel for improved stabilization. It maneuvers with ease thanks to its intuitive operator interface and simple joystick controls, even in demanding or unpredictable environments. Plus, its wide cab and improved operator station with adjustable steering column make for a more comfortable experience. A durable and capable machine you can depend on, the TH12-42 has the muscle where it counts.

Max. capacity:  12000 lb
Max. lifting height:  42 ft 6 in
Max. outreach:  28 ft 6 in
I.C. Engine power rating:  127 Hp



Features

Key Features

  • SUPERVIEW cab deisgn for increased line of sight to forks and load
  • Simple F-N-R joystick mounted to the seat for ease of use and operator comfort
  • EASY STEP cab floor allows for clear visibility of the step for exit and entry
  • digital display with 50 opearator aid messages to assist in correct operation
  • high visibility orange seat belt to verify operator use
  • stability system for machine re-position within restricted range
Capacities
Max. capacity12000 lb
Max. lifting height42 ft 6 in
Max. outreach28 ft 6 in
Weight and dimensions
Overall length to carriage20 ft 8 in
Overall length (with forks)24 ft 8 in
Overall width8 ft 4 in
Overall height8 ft 1 in
Wheelbase11 ft 6 in
Ground clearance1 ft 7 in
Overall cab width3 ft 1 in
Tilt-up angle34 °
Tilt-down angle96 °
External turning radius12 ft 9 in
Overall weight26751 lb
Tires typePneumatic
Forks length / width / section48 in x 6 in / 2 in
Frame leveling longitudinal +/-10 °
Performances
Lifting16 s
Lowering11 s
Extension17 s
Retraction12 s
Crowd4 s
Dump6 s
Engine
Engine brandDeutz
Engine normTier 4 final
Engine modelTCD 3.6 L4
Number of cylinders / Capacity of cylinders4 - 220 in³
I.C. Engine power rating - Power (kW)127 Hp / 95 kW
Max. torque / Engine rotation369 ft/lbs @ 2300 rpm
Transmission
Transmission typePowershift
Number of gears (forward / reverse)5/3
Max. travel speed22 mi/h
Parking brakeSAHR
Service brakeWet disc brakes
Hydraulics
Hydraulic pump typeAxial piston
Hydraulic flow / Pressure40 US gpm-4000 PSI
Tank capacities
Engine oil2 US gal
Hydraulic oil38 US gal
Fuel tank38 US gal
DEF tank capacity3 US gal
Noise and vibration
Noise at driving position (LpA)80 dB
Miscellaneous
Steering wheels (front / rear)2/2
Drive wheels (front / rear)2/2
