Gehl TH6-42

New Equipment / All Lines / Gehl / Telescopic Handlers / Construction Telehandlers / TH6-42

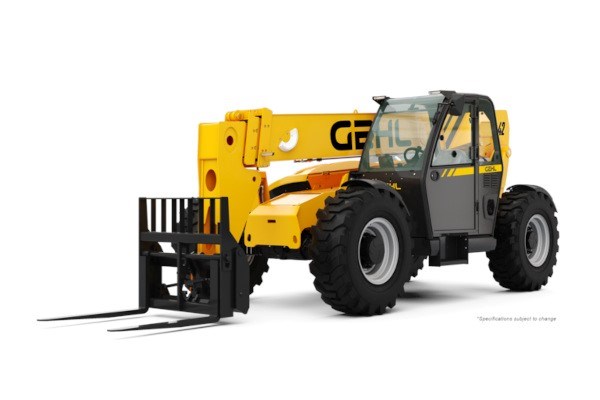

Model Photo

TH6-42

Lifting and moving material from your truck, over rough terrain, and to where it needs to go, the TH6-42 Telescopic Handler has the power and reach needed for residential and commercial property work—from roofing and siding to masonry. With enhanced forward visibility, a single joystick offering streamlined controls, and an intuitive interface that delivers the right information at the right time, this telescopic handler is designed to support a wide variety of operator skill levels. And with 300 degree access to the engine, it's easy to repair and maintain. From staging to clean up, it's the perfect companion for anyone who puts it all on the line to get a job done—on time.

Max. capacity:  6000 lb
Max. lifting height:  42 ft 6 in
Max. outreach:  28 ft 6 in
I.C. Engine power rating:  74 Hp



Features

Key Features

  • SUPERVIEW cab design for increased line of sight to forks and load
  • Simple F-N-R joystick mounted to the seat for ease of use and operator comfort
  • EASY STEP cab floor allows for clear visibility of the step for exit and entry
  • digital display with 50 operator aid messages to assist in correct operation
  • No DEF or DPF systems
  • high visibility orange seat belt to verify operator use
  • stability system for machine re-position within restricted range.
Capacities
Max. capacity6000 lb
Max. lifting height42 ft 6 in
Max. outreach28 ft 6 in
Weight and dimensions
Overall length to carriage20 ft 8 in
Overall length (with forks)24 ft 8 in
Overall width8 ft 2 in
Overall height8 ft
Wheelbase11 ft 6 in
Ground clearance1 ft 6 in
Overall cab width3 ft 1 in
Tilt-up angle34 °
Tilt-down angle96 °
External turning radius13 ft 1 in
Overall weight22851 lb
Tires typePneumatic
Forks length / width / section48 in x 4 in / 2 in
Frame leveling longitudinal +/-10 °
Performances
Lifting11 s
Lowering6 s
Extension17 s
Retraction11 s
Crowd4 s
Dump6 s
Engine
Engine brandDeutz
Engine normTier 4 final
Engine modelTCD 3.6 L4
Number of cylinders / Capacity of cylinders4 - 220 in³
I.C. Engine power rating - Power (kW)74 Hp / 55 kW
Max. torque / Engine rotation288 ft/lbs @ 2300 rpm
Transmission
Transmission typePowershift
Number of gears (forward / reverse)5 / 3
Max. travel speed20 mi/h
Parking brakeSAHR
Service brakeWet disc brakes
Hydraulics
Hydraulic pump typeAxial piston
Hydraulic flow / Pressure40 US gpm-4000 PSI
Tank capacities
Engine oil2 US gal
Hydraulic oil36 US gal
Fuel tank38 US gal
Noise and vibration
Noise at driving position (LpA)80 dB
Miscellaneous
Steering wheels (front / rear)2 / 2
Drive wheels (front / rear)2 / 2
