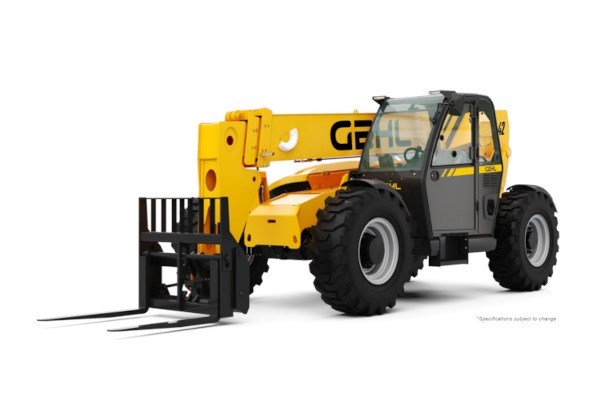

TH8-42
A versatile workhorse that's first to the job site and last to leave, the TH8-42 Telescopic Handler adapts to the task at hand and places material where it’s needed. With 8,000 lbs. of lifting capacity and improved stability, it's ready to power through whatever challenges come your way on the worksite. The TH8-42 also offers unmatched forward visibility, an easy-to-use joystick, and a supportive interface that delivers pertinent information like wheel alignment and current boom angle. Its perpendicularly mounted engine provides 300 degrees of access, enabling easier maintenance to reduce labor downtime and make you more productive in the most demanding environments. In other words, it's a machine that's as dedicated as you are when it comes to getting the job done right.
Max. capacity: 8000 lb
Max. lifting height: 42 ft 6 in
Max. outreach: 28 ft 6 in
I.C. Engine power rating: 127 Hp
Features
Key Features
- SUPERVIEW cab design for increased line of sight to forks and load
- Simple F-N-R joystick mounted to the seat for ease of use and operator comfort
- EASY STEP cab floor allows for clear visibility of the step for eit and entry
- digital display with 50 operator aid messages to assist in correct operation
- high visibility orange seat belt to verify operator use
- stability system for machine re-position within restricted range
| Capacities | |
| Max. capacity | 8000 lb |
| Max. lifting height | 42 ft 6 in |
| Max. outreach | 28 ft 6 in |
| Weight and dimensions | |
| Overall length to carriage | 20 ft 8 in |
| Overall length (with forks) | 24 ft 8 in |
| Overall width | 8 ft 2 in |
| Overall height | 8 ft |
| Wheelbase | 11 ft 6 in |
| Ground clearance | 1 ft 6 in |
| Overall cab width | 3 ft 1 in |
| Tilt-up angle | 34 ° |
| Tilt-down angle | 96 ° |
| External turning radius | 13 ft 1 in |
| Overall weight | 23951 lb |
| Tires type | Pneumatic |
| Forks length / width / section | 48 in x 4 in / 2 in |
| Frame leveling longitudinal +/- | 10 ° |
| Frame leveling corrector | 10 ° |
| Performances | |
| Lifting | 11 s |
| Lowering | 6 s |
| Extension | 17 s |
| Retraction | 11 s |
| Crowd | 4 s |
| Dump | 6 s |
| Engine | |
| Engine brand | Deutz |
| Engine norm | Tier 4 final |
| Engine model | TCD 3.6 L4 |
| Number of cylinders / Capacity of cylinders | 4 - 220 in³ |
| I.C. Engine power rating - Power (kW) | 127 Hp / 95 kW |
| Max. torque / Engine rotation | 369 ft/lbs @ 2300 rpm |
| Transmission | |
| Transmission type | Powershift |
| Number of gears (forward / reverse) | 5/3 |
| Max. travel speed | 21 mi/h |
| Parking brake | SAHR |
| Service brake | Wet disc brakes |
| Hydraulics | |
| Hydraulic pump type | Axial piston |
| Hydraulic flow / Pressure | 40 US gpm-4000 PSI |
| Tank capacities | |
| Engine oil | 2 US gal |
| Hydraulic oil | 36 US gal |
| Fuel tank | 38 US gal |
| DEF tank capacity | 3 US gal |
| Noise and vibration | |
| Noise at driving position (LpA) | 80 dB |
| Miscellaneous | |
| Steering wheels (front / rear) | 2/2 |
| Drive wheels (front / rear) | 2/2 |
