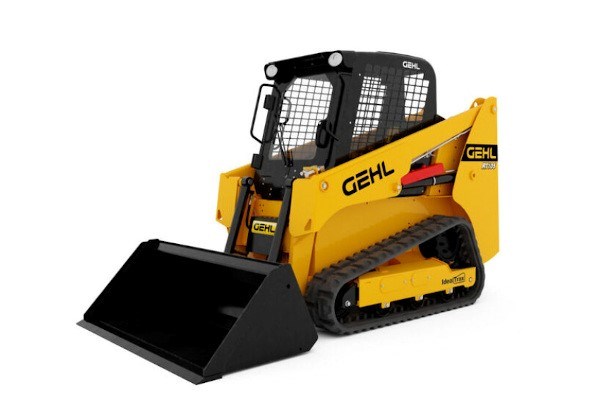

RT105
Working in rough terrain with limited access or narrow space? Then look to the RT105, an ultra-compact Track Loader that's packed to the brim with performance and features. Pilot-operated joystick controls deliver one-to-one proportional control over the drive system, which means you'll enjoy precision movement as you maneuver in and out of tight spaces. Its small size makes it simple to transport from job to job. Plus, it features our lowest ground pressure, which helps when driving on unstable ground and limits turf damage during turns or hauling, making it an ideal tool for landscapers where it's vital to protect property. And even though it's small, it's just as versatile as the rest of our machines and adapts to the task at hand through a variety of attachments. Get in, do work, and finish the job—the RT105 is ready when you are.
Overall Operating Height - Fully Raised: 144 in
Overall length with bucket: 118 in
Overall width less bucket: 51 in
Gross Power: 34.20 Hp
Features
Key Features
- IdealTrax™ - Automatic Track Tensioning System
- All-Tach™ Attachment System (Universal-Type)
- Audible Back-Up Alarm
- Hydraloc™ System
- ROPS/FOPS Level II
- Controls: T-Bar Controls / Hand-Foot / Pilot Joysticks
- Auxiliary Hydraulics
- Entry / Exit Grab Handles
| Capacities | |
| Operating Weight | 4720 lbs |
| Operating Capacity at 35% Tipping Load | 1049 lbs |
| Operating Capacity At 50% Tipping Load | 1499 lbs |
| Tipping capacity | 3000 lb |
| Weight and dimensions | |
| Overall Operating Height - Fully Raised | 144 in |
| Height to Hinge Pin - Fully Raised | 109 in |
| Reach - Fully Raised | 26 in |
| Dump angle at full height | 38 ° |
| Dump Height - Fully Raised | 84 in |
| Maximum Rollback Angle - Fully Raised | 102 ° |
| Overall Height to Top of ROPS | 71 in |
| Overall length with bucket | 118 in |
| Overall Length without Bucket | 89 in |
| Specified Height | 58 in |
| Reach at Specified Height | 39 in |
| Dump angle at specified height | 72 ° |
| Maximum Rollback Angle at Ground | 32 ° |
| Carry Position | 5 in |
| Maximum Rollback Angle at Carry Position | 32 ° |
| Digging Position | 0 in |
| Ground clearance | 8 in |
| Track gauge | 41 in |
| Track Shoe Width | 10 in |
| Crawler base | 51 in |
| Overall width less bucket | 51 in |
| Bucket Width | 54 in |
| Clearance Radius - Front with Bucket | 73 in |
| Clearance Circle - Rear | 51 in |
| Track Type / Track Rollers / Roller Type | Rubber / 3 / Steel |
| Performances | |
| Ground Speed - Single Speed | 6 mph |
| Engine | |
| Engine brand | Yanmar |
| Engine model | 3TNV88C Stage V |
| Gross Power (kW) / Gross Power | 25 kW / 2800 rpm |
| Battery | 12 V |
| Cold Cranking Amps at Temperature (CCA) | 800 A |
| Alternator - Voltage / Ampere | 12 V / 55 A |
| Hydraulics | |
| Standard flow - Auxiliary hydraulics | 15 US gpm |
| Tank capacities | |
| Hydraulic tank capacity | 8 US gal |
| Fuel tank | 10 US gal |
| Displacement | 0.43 US gal |
Equipment
| Lifting function | |
| All-Tach® Attachment Mounting System | Standard |
| Operator station | |
| Foot and Hand Throttles (Dual Joystick and T-bar) | Standard |
| Safety | |
| Hour meter | Standard |
