Gehl RT165

New Equipment / All Lines / Gehl / Track Loaders / Radial Lift / RT165

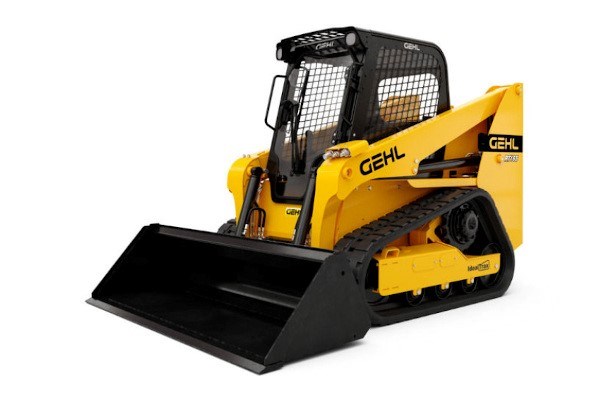

Model Photo

RT165

If you're looking for an agile and nimble track loader to tackle tough tasks on your site, the RT165 is your solution. Boasting a 52 kW engine, this compact unit offers an awesome power to weight ratio, increasing operator productivity in challenging applications. For those long days in the seat, the RT165 offers a plethora of options (HVAC, air-ride suspension seat, bluetooth radio) to enhance operator comfort. If you want to get more done in less time, do yourself a favor and look into an RT165. Thank us later.

Overall Operating Height - Fully Raised:  158 in
Overall length with bucket:  126 in
Overall width less bucket:  68 in
Gross Power:  69.30 Hp



Features

Key Features

  • Multiple Track Widths and Tread Patterns
  • Control Choices: T-bar, Pilot Joystick and Hand/Foot
  • IdealTrax™ Automatic Track Tensioning
  • High-Flow Auxiliary Hydraulics Available
  • Swing-out Cooler
Capacities
Operating Weight8020 lbs
Operating Capacity at 35% Tipping Load1649 lbs
Operating Capacity At 50% Tipping Load2357 lbs
Tipping capacity4716 lbs
Weight and dimensions
Overall Operating Height - Fully Raised158 in
Height to Hinge Pin - Fully Raised120 in
Reach - Fully Raised25 in
Dump angle at full height39 °
Dump Height - Fully Raised92 in
Maximum Rollback Angle - Fully Raised98 °
Overall Height to Top of ROPS78 in
Overall length with bucket126 in
Overall Length without Bucket94 in
Specified Height64 in
Reach at Specified Height22 in
Dump angle at specified height73 °
Maximum Rollback Angle at Ground28 °
Carry Position8 in
Maximum Rollback Angle at Carry Position28 °
Digging Position2 in
Ground clearance7 in
Track gauge55 in
Track Shoe Width16 in
Crawler base50 in
Overall width less bucket68 in
Bucket Width66 in
Clearance Radius - Front with Bucket78 in
Clearance Circle - Rear57 in
Track Type / Track Rollers / Roller TypeRubber / 4 / Steel
Performances
Ground Speed - Single Speed7 mph
Drawbar Pull/Tractive Effort9579 lbs
Bucket Breakout - Tilt Cylinder4231 lbs
Bucket Breakout - Lift Cylinder5060 lbs
Engine
Engine BrandYanmar
Engine model4TNV98C-NMS2V Stage V
Motor TypeRadial Piston
Gross Power (kW) / Gross Power52 kW / 2500 rpm
Battery12 V
Cold Cranking Amps at Temperature (CCA)950 A
Alternator - Voltage / Ampere112 V / 100 A
Hydraulics
Standard flow - Auxiliary hydraulics19 US gpm
Tank capacities
Oil Pan Capacity2 US gal
Hydraulic tank capacity10 US gal
Fuel tank17 US gal
Displacement / Number of cylinders0.87 US gal / 4
