White's Farm Supply

HLA Snow SB500018

HLA Snow SB500018 for sale at White's Farm Supply

Double tap to zoom

HLA Snow SB500018 for sale at White's Farm Supply

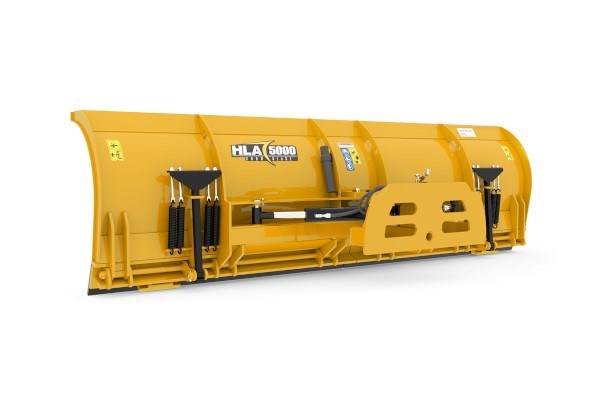

5000 Series SB500018

The 5000 Series Angle Blade is sized for wheel loaders and ag tractors, from 22,000 to 40,000 lbs. operating weight. Featuring hydraulic angle, this blade is ideal for agricultural property maintenance and commercial snow clearing alike.



Features

Features

  • 2 Year Warranty
    Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.
  • 35° Angle with Crossover Relief Valve Protection
    Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.
  • Lateral Float
    Allows blade to follow ground contours for better clearing performance.
  • Mouldboard Profile
    Precision engineered curve rolls and folds snow. This reduces sticking, side tracking and spill over.
  • Nitrate Rods on Angle Cylinders
    Nitrate rods on angle cylinders.
  • Replaceable, Reversible Cutting Edge
    Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.
  • Spring Trip Cutting Edge
    Allows cutting edge to trip back if struck by hidden object limiting damage.
  • Cast Highway Skid Shoes
    Standard on 4000, 5000, 6000 snow blades without Edge Flex. Cast high tensile long wear skid shoes provide excellent longevity and performance suited for heavy duty clearing on concrete or asphalt.



Options

  • Rubber Cutting Edge
    Allows blade to trip back if struck by hidden object limiting damage. Standard on SB5000R models.
  • Spill Guard
    Available on all SnowWing models and the 5000, 5000, 5000, & 6000 series SnowBlades.
  • Carbide Cutting Edges
    Carbide edges are designed for heavy commercial use, this non reversible cutting edge is suited for heavy duty clearing on concrete or asphalt.
    NOTE: Colour added to image to highlight carbide.
  • Floating Blade Hinge
    This option adds a mechanical float to the blade. This allows the blade to better follow the surface contour. The float is designed to be simply locked out when not needed by rolling the blade forward.
  • Snowblade Marker
    Add this to your blade for better visibility and blade position awareness.
  • Curb Runner
    Protects cutting edge from potential wear from rubbing against curbs etc.
  • AR400 Large Pad Skid Shoe
    Large pad style skid shoe for better floatation on soft surfaces NOTE: Available on non Edge Flex models.
  • Edge Flex Models
    Available in Edge Flex. Segmented cutting edges available with standard hardox or heavy duty carbide.

Specs

Part# SB500018
Approx. Weight (LBS.) 3,365
Length (in.) 216
Overall Road Width (Angled) (in.) 190
Snow Clearing Width (Angled) (in.) 178
Mouldboard Height (in.) 42"
Max Operating Weight (lbs.) 40,000
