3530W Series SP3530W611

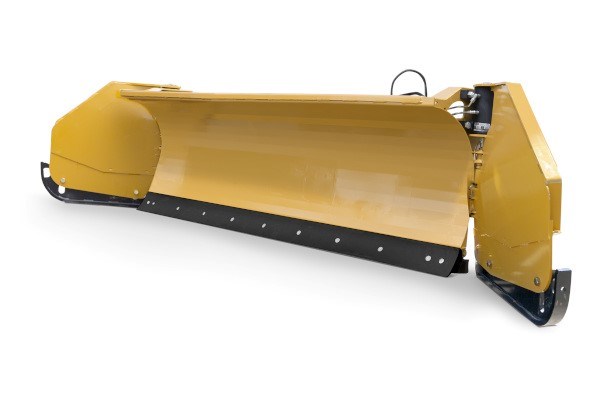

The 3530W Series SnowPusher is sized for skid steers, compact wheel loaders and ag tractors, up to 13,000 lbs. operating weight. Featuring 30” long adjustable wings with patented rotary actuators, this pusher is ideal for both containment pushing, and back dragging in the reverse-box position.



Features

Features

  • 2 Year Warranty
    Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.
  • Lateral Float
    Allows blade to follow ground contours for better clearing performance.
  • Replaceable, Reversible Cutting Edge
    Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.
    Note: Replace endcaps along with cutting edges to prevent streaming.
    Currently not available on wings. (non Edge Flex only)
  • Adjustable Skid Shoes
    Allows you to set cutting depth for optimum performance and prolonged cutting edge life.
  • Rotary Actuators - PATENTED
    These rugged units come from the construction industry and deliver up to 21,000 in. lbs of torque at 3000 PSI to hold the wings in place.
  • Spring Trip Cutting Edge
    Allows cutting edge to trip back if struck by hidden object limiting damage.
  • Single Selector Valve
    Allows the control of each wing to be operated independently. 12V or 24V coils available. Includes in cab mount electro-hydraulic harness kit.



Options

  • Carbide Cutting Edges
    Carbide edges are designed for heavy commercial use, this non reversible cutting edge is suited for heavy duty clearing on concrete or asphalt. NOTE: Colour added to image to highlight carbide.
  • Rubber Cutting Edge
    The optional rubber cutting edge is available for select models.
  • Snowblade Marker
    Add this to your blade for better visibility and blade position awareness.
  • Edge Flex Models
    Available in Edge Flex. Segmented cutting edges available with standard hardox or heavy duty carbide.

Specs

Part # SP3530W611
Approx. Weight (LBS.) 1,390
Length (Closed/ Open) 72" / 132"
Mouldboard Height 30"
Max Operating Weight (LBS.) 13,000
