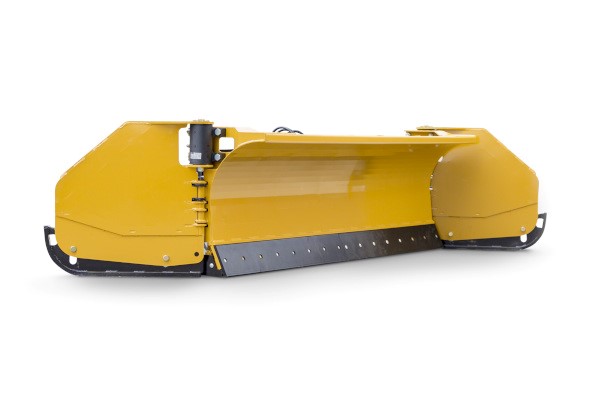

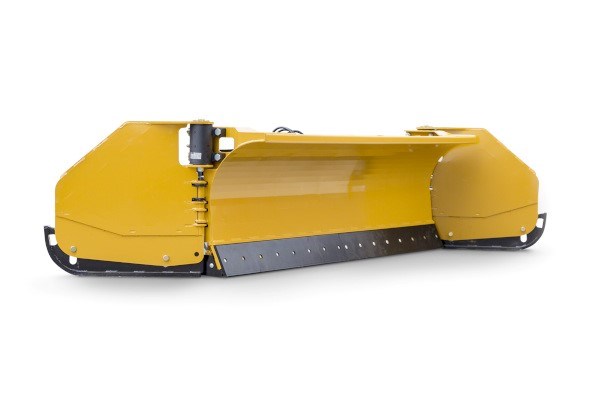

4203W Series SB4203W915
The 4203W Series SnowWing is sized for ag tractors and wheel loaders from 10,000 to 25,000 lbs. operating weight. Featuring 36” long adjustable wings with patented rotary actuators, to combine the functionality of both angle blades and box pushers, it provides unparalleled efficiency and productivity for commercial contractors.
Features
- 2 Year Warranty
Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty. - 180° Rotation
Infinitely and independently adjustable, our wings are rugged enough to stay put and give you control of any situation. - 35° Angle with Crossover Relief Valve Protection
Allows the blade to be rotated 35° in either direction, while the cross over relief valve protects from structural damage to either the machine or property. - Floating End Plate Edge
Floating endplate edges follow surface contour for confident snow clearing. - Lateral Float
Allows blade to follow ground contours for better clearing performance. - Mouldboard Profile
Precision engineered curve rolls and folds snow. This reduces sticking, side tracking and spill over. - Replaceable, Reversible Cutting Edge
Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.
Note: Replace endcaps along with cutting edges to prevent streaming. Wing edges are not reversible.
(non Edge Flex only) - Nitrate Rods on Angle Cylinders
Nitrate rods on angle cylinders. - Rotary Actuators - PATENTED
These rugged units come from the construction industry and deliver up to 38,720 in. lbs of torque at 3000 PSI to hold the wings in place. - Cast Highway Skid Shoes
Standard on 4203W, 4205W, 5203W, 5205W, and 6205W SnowWings without Edge Flex. Cast high tensile long wear skid shoes provide excellent longevity and performance suited for heavy duty clearing on concrete or asphalt. - Spring Trip Cutting Edge
Allows cutting edge to trip back if struck by hidden object limiting damage. - Tire Protection System - PATENTED
Our Tire Protection System means that you get the most out of your Snow Wing while keeping the air in your tires. The system automatically protects from unintended damaging collisions between your front tires and end plates. The end plates are automatically rotated away from the tires so the operator can focus on clearing snow and worry less about damaging equipment. - Double Selector Valve
Allows the control of each wing to be operated independently. 12V or 24V coils available. Includes in cab mount electro-hydraulic harness kit. - Quick attach frame kits
Quick attach frame kits are available for most makes. Call dealer for details.
Options
- Rubber Cutting Edge
- Spill Guard
- Curb Runner
- Carbide Cutting Edges
- High Tensile Long Wear Skid Shoes
- Snowblade Marker
- Floating Blade Hinge
- Foot Switch
- SB4QDM Quick Attach Snow Blade Mount
Specs
| Model | B4203W915 |
| Approx. Weight (lbs) | 2,880 |
| Clearing Width Closed (in.) | 108 |
| Clearing Width Open (in.) | 180 |
| Overall Road Width (Angled; in.) | 102 |
| Snow Clearing Width (Angled; in.) | 146 |
| Wing Width (Each) | 36" |
| Mouldboard Height | 34 |
| Max Operating Weight (lbs.) | 25,000 |
