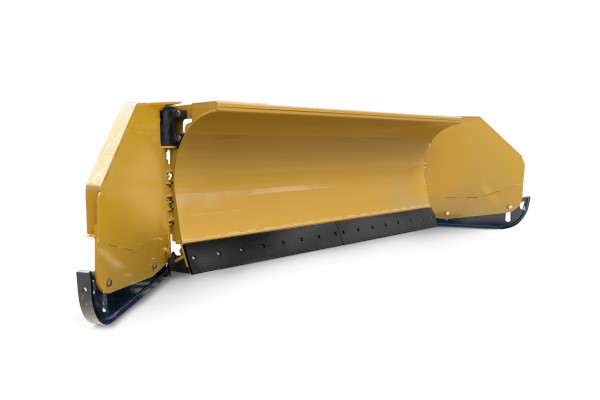

HLA Snow SB5203W1622

Features

• 2 Year Warranty
  Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.
• 180° Rotation
  Infinitely and independently adjustable, our wings are rugged enough to stay put and give you control of any situation.
• 35° Angle with Crossover Relief Valve Protection
  Allows the blade to be rotated 35° in either direction, while the cross over relief valve protects from structural damage to either the machine or property.
• Floating End Plate Edge
  Floating endplate edges follow surface contour for confident snow clearing.
• Lateral Float
  Allows blade to follow ground contours for better clearing performance.
• Mouldboard Profile
  Precision engineered curve rolls and folds snow. This reduces sticking, side tracking and spill over.
• Nitrate Rods on Angle Cylinders
  Nitrate rods on angle cylinders.
• Replaceable, Reversible Cutting Edge
  Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.
  Note: Replace endcaps along with cutting edges to prevent streaming.
  Wing edges are not reversible.
  (non Edge Flex only)
• Rotary Actuators – PATENTED
  These rugged units come from the construction industry and deliver up to 38,720 in. lbs of torque at 3000 PSI to hold the wings in place.
• Cast Highway Skid Shoes
  Standard on 4203W, 4205W, 5203W, 5205W, and 6205W SnowWings without Edge Flex. Cast high tensile long wear skid shoes provide excellent longevity and performance suited for heavy duty clearing on concrete or asphalt.
• Spring Trip Cutting Edge
  Allows cutting edge to trip back if struck by hidden object limiting damage.
• Tire Protection System – PATENTED
  Our Tire Protection System means that you get the most out of your Snow Wing while keeping the air in your tires. The system automatically protects from unintended damaging collisions between your front tires and end plates. The end plates are automatically rotated away from the tires so the operator can focus on clearing snow and worry less about damaging equipment.
• Double Selector Valve
  Allows the control of each wing to be operated independently. 12V or 24V coils available. Includes in cab mount electro-hydraulic harness kit.
• Quick Attach Frame Kits
  Quick attach frame kits are available for most makes. Call dealer for details.

Options

• Rubber Cutting Edge
  The optional rubber cutting edge is available for select models.
• Spill Guard
  Available on all SnowWing models and the 3000, 4000, 5000, & 6000 series SnowBlades.
• Carbide Cutting Edges
  Carbide edges are designed for heavy commercial use, this non reversible cutting edge is suited for heavy duty clearing on concrete or asphalt.
  NOTE: Colour added to image to highlight carbide.
• Curb Runner
  The optional Curb Runner runs along the front face of the curb, preventing the edge of the wing from catching on any edges.
• Floating Blade Hinge
  This option adds a mechanical float to the blade. This allows the blade to better follow the surface contour. The float is designed to be simply locked out when not needed by rolling the blade forward.
• Snowblade Marker
  Add this to your blade for better visibility and blade position awareness
• Foot Switch
  The new Foot Switch is a direct replacement for the 3-way toggle switch traditionally used to control the diverter valve on SnowWing plows.
  Available as a field install kit to retrofit from a 3-way toggle switch, or as an upgrade option with a new plow order.
• SB5QDM Quick Attach Snow Blade Mount
  Call dealer for more details.
• AR400 Large Pad Skid Shoe
  Large pad style skid shoe for better floatation on soft surfaces
  NOTE: Available on non Edge Flex models.
• Edge Flex Models
  Available in Edge Flex. Segmented cutting edges available with standard hardox or heavy duty carbide.
