Land Pride SG2584

New Equipment / All Lines / Land Pride / CE Attachments / SG25 Series Skid Graders / SG2584
Land Pride SG2584 for sale at White's Farm Supply

Double tap to zoom

Land Pride SG2584 for sale at White's Farm Supply

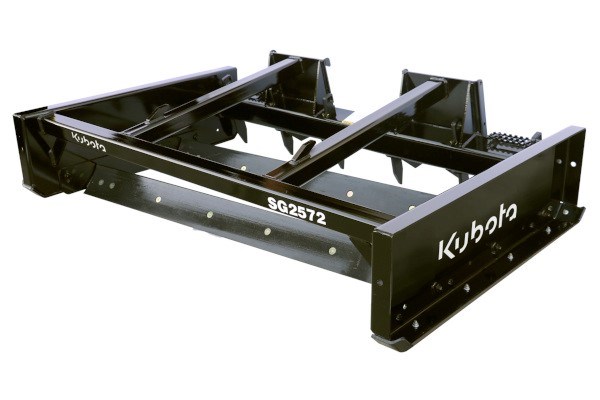

SG25 Series Skid Graders SG2584

Kubota by Land Pride: Landscapers, contractors, homeowners, and developers can level construction sites, prepare seedbeds, and rejuvenate driveways forwards or backwards with the SB2572 & SG2584 Skid Graders. Ripper teeth break compacted soils for a better finish. Only available through Kubota Dealers.



Features

Features Benefits
Skid steer mounting plate. Fits most/all skid steer front loader hitches.
40-95 hp requirements. Makes it compatible with many popular smaller sized skid steers and tractors in use today.
Dual adjustable height grader blades. Allows the grader to be adjusted to desired amount of cultivation, leveling, and grading action.
3-Position scarifier shanks. Allows shanks to be adjusted to two depths or above ground.
Ripping-Only Functionality Frame geometry gives the user the option to solely use straight shanks, reducing horsepower requirements whenthe surface requires multiple ripping passes.
Reversible heat treated high carbon steel grading blades. For excellent wear resistance and long service life.
Hardened straight shanks. Assures long service life.
Full length heavy duty skid shoes. Makes for easier operation and long unit life.
Replaceable and reversible skid shoes. Extends the life of the skid shoes.
Heavy duty frame construction. Assures long lasting reliability and performance.

Specs

Model Numbers AP-SG2584
Working width 84"
Overall width 93 1/4"
Number of straight shanks 7
Skid steer & tractor hp requirement 40-95 hp
Unit weight with shanks 952 lbs.
Overall length 52 1/4"
Overall height 22"
Side panel height with skid shoes 15 1/2"
Side panel length 50"
Side panel thickness 1/4" Thick with 2 3/4" formed edges.
Skid shoe construction 3/8" Thick with a formed bevel to prevent gouging.
Straight shank construction Heat-treated 3-position shank
Cutting edges Four 1/2" x 6" high-carbon, heat-treated blades that are reversible and replaceable
Cutting edge adjustment Variable vertical adjustment from level grade to 1 1/2" below grade.
Shank adjustments 2 1/2" and 3/4" below grade level; 3/4" above grade level
Hitch type Skid steer mounting plate
