Land Pride BB1254

New Equipment / All Lines / Land Pride / Dirtworking / BB12 Series Box Scrapers / BB1254
Land Pride BB1254 for sale at White's Farm Supply

Double tap to zoom

Land Pride BB1254 for sale at White's Farm Supply

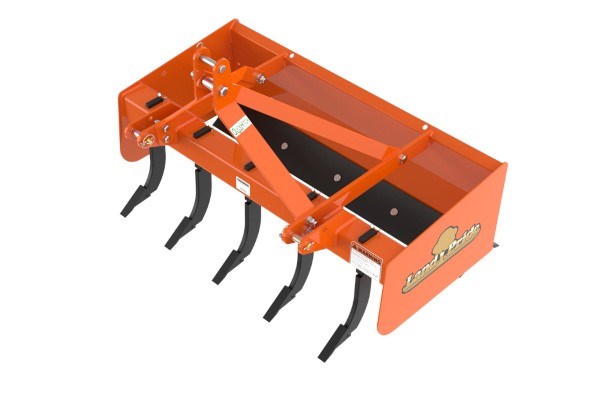

BB12 Series Box Scrapers BB1254

The Land Pride BB1248, BB1254, BB1260, BB1266 & BB1272 Box Scrapers are designed for Category 1 - 3-point hitch or Quick-Hitch System mounting to tractors in the 30 hp range. These Box Scrapers are ideal for ripping, leveling, finish grading, and back-filling applications and offer forward and reverse cutting edges. Th... + Read More



Features

FEATURES BENEFITS
3/16” Heavy side panels Built heavy to handle the tough jobs.
Shank support Many competitors use angle iron. Manufactured shank tube is more durable.
Clevis -type lower 3-point hitch Much stronger than pin type hitch.
3 Position heat treated spring steel shanks Offers flexibility for deep to shallow settings and Heat-treated for longevity.
48", 54", 60", 66" & 72" Working
widths		 Offered in several widths to meet customer’s needs.
17-30 HP Range Fits a wide variety of tractors.
Formed moldboard Formed moldboard keeps materials flowing which puts less drag on the Box Scraper, resulting in lower HP requirements and faster working conditions.
15 3/8” Moldboard height High material capacity.
Moldboard Heavy moldboard holds its shape under heavy loads.
Heat treated dimpled-on tips Easy to replace tips that are heat treated for toughness.
Heat-treated, reversible and replaceable cutting blades Heat-treated for hardness. Reversible so both edges can be used before replacing the cutting blades.
Rear backfill blade Rear backfill blade allows for backfilling trenches or foundations.
Warranty One year parts & labor.
Category I 3-Point hitch
with Quick Hitch capability		 Fits a wide variety of tractors.
Quick Hitch capability allows for easy hook-up.

Specs

Model BB1254
Working Width 54"
Capacity 10.57 cu. ft.
Weight 325 lbs.
Number of Shanks 4
Shank Material 3/4" x 2 1/2" x 15" heat treated spring steel
Vertical Shank Positions 3- positions (2 1/4" above scraper end plates; 1/4" and 2 3/4" below scraper end plates)
Shank Tip Construction Replaceable heat treated dimpled-on tips
Shank Beam 4" x 4" x 1/4" Manufactured shank tube
Shank Lift Mechanism Manual lift with spring retainer at each shank
Moldboard Bumped-formed moldboard 15 3/8" vertical height
Side Panels 3/16" thick x 16" high x 24" deep
Depth of Bucket 23 1/8"
Bucket Reinforcement Two welded braces to rear of bucket
Cutting Blades 2 ea. 3/8" x 6" high carbon, heat treated cutting edges; reversible and replaceable
Maximum H.P. Rating 30 Hp
A-Frame Material 1/2" x 3"
3-Point Hitch Type Double strap lower hitch
Cat. I (Fits Land Pride Quick Hitch)
