Land Pride DH1048

New Equipment / All Lines / Land Pride / Dirtworking / DH10 Series Disc Harrows / DH1048

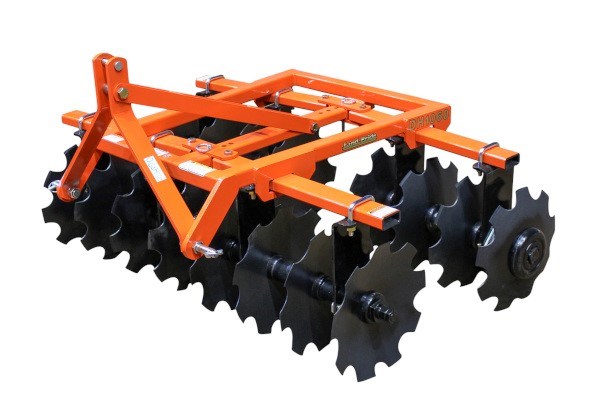

Land Pride DH1048 for sale at White's Farm Supply

Double tap to zoom

Land Pride DH1048 for sale at White's Farm Supply

DH10 Series Disc Harrows DH1048

The Land Pride DH1048 & DH1060 Disc Harrow opens and breaks up the soil surface to help prepare the soil seedbed for planting. The forward gang has aggressive notched discs while the rear gang has a choice of notched or smooth discs to quickly break up and evenly redistribute the finely cultivated topsoil. The DH10 Ser... + Read More



Features

FEATURES BENEFITS
Working widths 48", 60"
Cat. 1 3-point hitch Fits Land Pride Quick-Hitch for easy one-person attachment and removal.
Weight 48" - 412 lbs.; 60" - 533 lbs. Heavy construction helps penetrate ground.
2” Square frame tube Frame tubing is stronger than angle iron.
4 Adjustable gang angles Cutting aggressiveness can be adjusted on the front and rear up to 21 degrees.
3” x 1 1/2” Gang tube, 1” Sq. gang axles, high carbon steel High carbon square axles offer great strength in punishing conditions.
16” or 18” Notched or smooth disc blade Choose notched blades for more aggressive digging and cutting action, or the smooth blades for light tilling. (16” blades only on 48” width)
3/8” Thick bearing hangers Heavy-duty hangers resist the high torque from U-bolts and/or keep the discs out of the ground.
3/8” Frame side plates Offer additional strength and reinforcement to the gang tube.
Self aligning sealed bearings Self-aligning bearings offer long life while pounding through hard ground.

Specs

Model DH1048
3-Point Hitch Type Cat. I (Fits Land Pride Quick Hitch) Cat. I & Cat. II
Horsepower Rating Max 40 HP
Cultivation width 48"
Height 34 3/4"
Disc blade sizes 16"
Length with largest dia. disc blades 50"
Weight Standard Disc 421 lbs.
Weight larger Disc -
Weight load per standard disc 35 lbs.
Weight load per larger disc -
No. of disc blades 12
Disc blade types Notched or Smooth
Disc blade spacing 7 1/2"
Bearing hanger 3/8" Plate with 5/8" u-bolt
Bearing type, 2 per gang Self aligning, sealed ball bearing
Disc angle Front & rear gang: 0, 7, 14, & 21 degrees
Frame tubes 2" square
Gang tube 3" x 1 1/2"
Gang axle 1" Square high carbon steel
Disc scrapers Not Available
9" Center sweep Not Available
