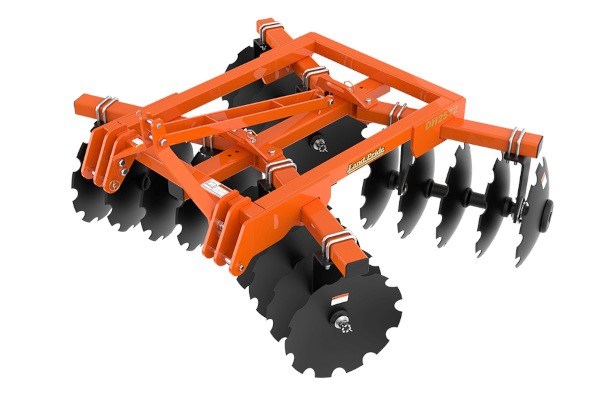

DH25 Series Disc Harrows DH2572

Land Pride's DH25 Series Disc Harrows breakup and redistribute the soil surface in preparation of seedbed and field planting operations. Disc gangs can be ordered with smooth or notched disc gang arrays for lighter or more aggressive applications and this series does offer 20" diameter or larger 22" diameter discs to m... + Read More



Features

FEATURES BENEFITS
Working widths 72”, 96”
Cat. 1 & 2 3-point hitch Fits a wide variety of tractors.
Quick-Hitch compatible Fits Land Prides Quick-Hitch for easy one-person attachment and removal.
Weight 72” = 947 lbs.; 96” = 1143 lbs. Heavy construction helps penetrate ground
3” Square frame tube Heavy frame can handle 100 HP tractors.
Ball bearings Self-aligning, sealed ball bearings.
4 Adjustable front gang angles; 3 Adjustable rear gang angles Vary the degree of aggressiveness on both front and rear gangs up to 21 degrees.
Gang adjustment handle Gives the user something to hold on to while adjusting the gang angles.
4” x 3” Gang tube The gang tube resists twisting due to 4” horizontal width.
1-1/8” Square gang axles Large axles can resist the high load put on them as the discs roll through the ground.
20” or 22” Notched disc blades Larger discs will penetrate harder ground.
1/2” Thick bearing hangers 1/2” Thick bearing hangers resist high torque.
Optional scrapers Scrapers will clean the disc blades off which can plug up and/or keep the discs out of the ground due to mud build-up. Adjustable.

Specs

Model DH2572
3-Point Hitch Type Cat. I & Cat. II (Fits Land Pride Quick Hitch)
Horsepower Rating 40 to 100 HP
Cultivation width 72"
Height 40 1/4"
Disc blade sizes 20" or 22"
Length with largest dia. disc blades 70 3/4"
Weight Standard Disc 947 lbs.
Weight larger Disc 1037 lbs.
Weight load per standard disc 47 lbs.
Weight load per larger disc 51 lbs.
No. of disc blades 20
Disc blade types Front - notched; Rear - smooth or notched
Disc blade spacing 7 1/2"
Bearing hanger 1/2" Plate, 2 each 5/8" u-bolt
Bearing type, 2 per gang Self aligning, sealed ball bearing
Disc angle Front gang: 0, 7, 14, & 21 degrees with angling adjustment handle; Rear Gang: 7, 14 & 21 degrees With angling adjustment handle
Frame tubes 3" square
Gang tube 4" x 3"
Gang axle 1 1/8" Square high carbon steel
Disc scrapers Optional, Adjustable
9" Center sweep Optional, Removes center ridge
