Land Pride GS1548

New Equipment / All Lines / Land Pride / Dirtworking / GS15 Series Grading Scrapers / GS1548
Land Pride GS1548 for sale at White's Farm Supply

Double tap to zoom

Land Pride GS1548 for sale at White's Farm Supply

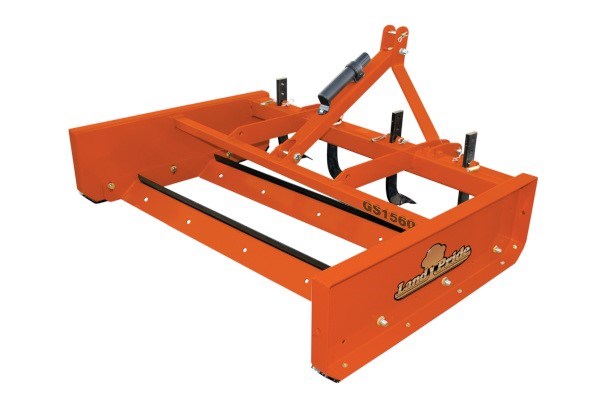

GS15 Series Grading Scrapers GS1548

Land Pride's GS1548, GS1560 & GS1572 Grading Scrapers have uses in applications such as landscaping, small farms and ranches, hunting camps, large estates, small acreages, and sod farms. The GS15 is extra user-friendly and a low cost alternative for road grading applications. Unlike a box scraper, they are not designed... + Read More



Features

FEATURES BENEFITS
Cat. 1 and Cat.1 Quick Hitch compatible.
Has lower hitch clevis type mountings.		 Makes for faster and easier hookup to the tractor.
20-50 hp requirements with 48" working width
25-50 hp requirements with 60" & 72" working widths.		 Makes it compatible with many popular smaller sized and
properly ballasted compact utility tractors in use today.
Dual adjustable height grading blades
and optional 4-position scarifier shanks.		 Allows the scraper to be adjusted to desired amount of cultivation, leveling, and grading action.
Reversible heat treated high carbon steel
grading blades.		 For excellent wear resistance and long service life.
Hardened tips on optional scarifier shanks. Assures long service life.
Replaceable and full length heavy gauge skid
shoes.		 Makes for easier operation and long unit life.
Reversible skid shoes Extends the life of the skid shoes.
Heavy duty frame construction.
Assures long lasting reliability and performance.
Available in Land Pride Beige or Orange
Paint.		 To meet customers preference.

Specs

Model Numbers GS1548
Working width 48" (1.22 m)
Overall width 54 1/4" (1.38 m)
Number of scarifier shanks 4
Tractor horsepower requirement 20-50 hp (14.9-37.3 kw)
Unit weight with shanks 437 lbs (198.2 kg)
Overall length 50" (1.27 m)
Overall height 32" (81.3 cm)
Side panel height 14" (35.6 cm)
Side panel length 44" (1.12 m)
Side panel thickness 3/16" (5 mm) Thick with 2 3/4" formed edges.
Front main beam & scarifier Support. 4"x 4" x 5/16" (10.2 cm x 10.2 cm x 0.8 cm) Reinforced heavy wall tubing.
Rear beam construction 2"x 2"x 3/16" (5.1 cm x 5.1 cm x 0.5 cm) Heavy wall tubing.
Skid shoe dimensions 3/8" (10 mm) Thick x 2 3/4" (7.0 cm) wide x 44" (1.12 m) long.
Scarifier shank construction - Optional Heat treated 4-position shank with dimpled-on hardened tips.
Cutting edges Two 1/2" x 6" (1.3 cm x 15.2 cm) high carbon heat treated blades that are reversible and replaceable.
Cutting edge placement Two parallel grading blades positioned at a 5 degree grading angle with 17 1/2" (44.5 cm) fore and aft spacing in between leading edges.
Cutting edge adjustment Infinite vertical adjustment from level grade to 1 1/2" (3.8 cm) below grade.
Shank adjustments 3 1/2" and 1 1/2" (8.9 cm and 3.8 cm) below grade level. 1/2" and 2 1/2" (1.3 cm and 6.4 cm) above grade level.
Lower draft link attachment Clevis type
Hitch type Category 1 and Category 1 Quick Hitch
Color selections Land Pride Beige or Orange
