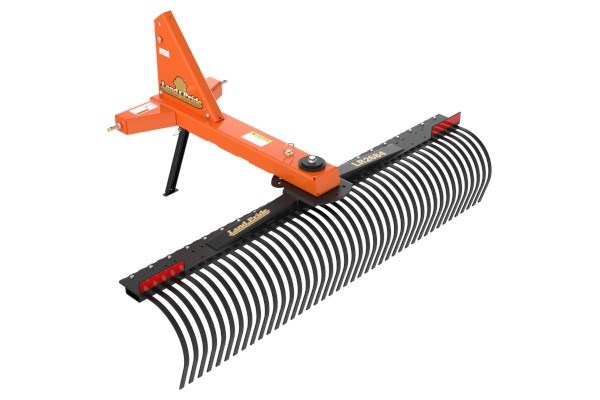

LR26 Series Landscape Rakes LR2684
The LR26 Series Landscape Rakes are ideal for spreading rock, moving debris, preparing seed beds, and reshaping soil and/or aggregate profile. LR26 Rakes are available in 84" (LR2684) and 96" (LR2696) widths. These Landscape Rakes offer seven forward angles up to 45 degrees. The LR26 is designed for tractors up to 60 H... + Read More
Features
| FEATURES | BENEFITS |
| 60", 72", 84", 96" Working Widths | Meets a wide range of customer needs. |
| LR16 Series: 20-40 Tractor HP Range LR26 Series: 25-60 Tractor HP Range |
Fits many tractors with a Cat. l 3-Point hitch. |
| Quick Hitch Adaptable | Fits Land Pride Quick Hitch for a quick and easy one person hook-up. |
| Retractable Park Stand | Keeps frame off the ground and makes hook-up easier. |
| 3 1/2" Pivot Tube | Heavy frame tube. Heaviest in its class. |
| 16 1/2" Rake Height | Can move a great deal of material. |
| Rake Teeth Support Channel | Design with channel support. This design supports the rake teeth better than competitor models. Prevents teeth entanglement and keeps attachment hardware from working loose. |
| 5/16’ x 1" High Carbon Spring Steel Teeth |
Sized to eliminate premature bending and tooth breakage. Constructed of materials that have “memory” to spring back to shape. |
| Individual Replaceable Teeth | Makes replacing a damaged tooth quick and easy without removing all of the teeth. |
| Angle 7 Positions | Versatility in operation. Vary how much material to move. |
| Hydraulic Angle Kit (Accessory) | Allows the operator to change rake angle from the tractor seat. |
| Dual Gauge Wheels (Accessory) | Gives operator better depth control. Wide & narrow wheels available. |
| Flip-Down Grader Blade with End Plates (Accessory) |
Enables the rake to perform light blading duties for moving and leveling dirt as well as other materials. Grader blade can be flipped up when not in use. |
| Rear Blade Attachment (Accessory) | The rake assembly can be removed from the main frame and a Rear Blade attached to give the Land Pride Rake versatility. |
Specs
| Model | LR2684 |
| Rake Width | 84" |
| Approximate Weight (lbs.) | 330 |
| Number of Teeth | 42 |
| Horsepower Rating | 25-60 |
| Hitch Category | Cat. l Fits Land Pride Quick Hitch |
| Pivot Tube Diameter | 3 1/2" |
| Rake Height | 16 1/2" |
| Park Stand | Standard |
| Individual Replaceable Teeth | Standard |
| Teeth Size | 5/16" x 1" Wide |
| Teeth Spacing | 2" Centers |
| Teeth Material | High Carbon Spring Steel |
| Rake Angle Manually Hydraulically (Accessory) |
7 Forward positions, Maximum 45° Right or Left in 15° Increments Infinite number of forward positions, maximum 45° Right or Left |
| Dual Gauge Wheels* (Accessory) | Dual Narrow Width Wheels 13" x 4" x 6" or Dual Wide Width Wheels 13" x 6.5" x 6" |
| Flip Down Grader Blade (Accessory) | Flip Down Self Supporting Grader Blade with Blade-up Locking Handles and Locking Pins |
| Rear Blade Attachment (Accessory) | Available in 72", 84" & 96" Working Widths |
| * Dual gauge wheels are capable of supporting Flip Down Grader Blade Accessory. | |
