RB37 Series Rear Blades RB3796

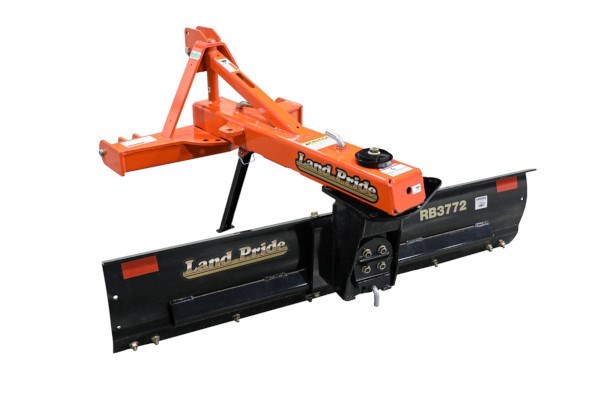

The Land Pride RB3772, RB3784 & RB3796 Rear Blades with 3-Way Positions (blade angle, blade tilt, and blade offset) are built tough from the ground up for leveling, finish grading, and backfilling applications at feedlots, outdoor arenas, building sites, nurseries, and maintenance operations on farms, ranches, or home ... + Read More



Features

FEATURES BENEFITS
Working widths (72", 84" & 96") Choice of three sizes to pick from.
35-80 HP rating Fits a wide variety of small tractors.
Quick-Hitch Fits Land Pride Quick-Hitch.
Blade angles left and right up to 45° in forward position and 30° in
reverse position		 Allows operator to set the blade at many angles to complete different jobs with
satisfactory results.
See Specifications for number of angles in forward and reverse positions.
Blade offsets left or right up to 26" Manually rotate main frame in 15° increments up to 45° to cover either tractor tire and to allow operators to work next to retaining walls, abutments, and curbing.
Blade tilts up or down up to 15° (5 positions: Center, 2 clockwise, and 2 counterclockwise) Allows operator to do simple tasks such as putting a crown in the middle of a road to making V-type ditches.
17" High Moldboard Rolled moldboard allows material to flow easily, which means less drag, less HP.
17" High moldboard for excellent capacity.
Reversible cutting edge For twice the life.
Parking stand Store unit with front of hitch off the ground, allows for easier hook-up.
Skid shoes (optional) Help protect from hitting low obstructions by keeping the cutting edge off the ground. Set skid shoes to clear obstructions like manhole covers and street cracks.
End Plates (accessory) End plates hold material in to be moved.
Hydraulic Angling (Accessory) Allows operator to change blade angle from the tractor seat.

Specs

Model RB3796
Blade Width 95 1/2"
Approximate Weight 665 lbs.
Horsepower Rating 35-80 HP
Moldboard Height 17"
Moldboard Thickness 5/16"
Reinforced Blade Yes
Hitch Type Cat. l & ll Combination (Quick Hitch Adaptable)
Blade Angle Standard (Manually)

Hydraulically		 7 Forward positions up to 45° clockwise and counterclockwise
3 Reverse positions up to 30° clockwise and counterclockwise
Any degree up to 45° forward and 30° in reverse.
Blade Offset Maximum 26" left or right in 15° increments
Blade Tilt 7 Positions; Maximum 22.5° up and 22.5° down in 7 1/2° increments
Cutting Edge 1/2" x 6" Heat treated, Replaceable & Reversible (Double bevel)
Parking Stand Folding
Accessories Hydraulic Blade Angling, Skid Shoes, and End Plates
