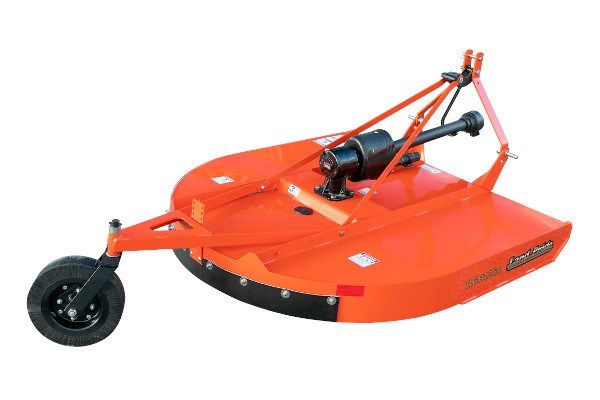

RCR12 Series Rotary Cutters RCR1248
The RCR1242, RCR1248, RCR1260 & RCR1272 Rotary Cutters from Land Pride is an economical solution to grass maintenance on farms, rural areas, or vacant lots. The 1" cut capacity makes it a good solution for rough-cut areas that have small saplings and weeds. The RCR12 is a good match for a subcompact or compact tractor ... + Read More
Features
| FEATURES | BENEFITS |
| Surpassed rugged industry standards | All Land Pride Cutters have been designed and tested and meet rigorous voluntary testing procedures specified by ANSI. |
| Tractor HP range | 18 - 60 HP |
| Cat. 3 driveline with shearbolt | Shear bolt offers maximum driveline protection. |
| Cat. 3 driveline with 2-plate slip-clutch | Slip-clutch driveline offers convenience for continual work. |
| Floating top link | Provides for easy hook-up. Permits deck to follow the terrain for an even cut. Two hole position to allow greater lift leverage for smaller tractors |
| Round back design | Helps discharge grass better than enclosed or partially enclosed cutters. |
| 1 1/4” - 10” Cutting Height | Cutting height for wide range of cutting conditions. |
| Skid shoes (Accessory) RCR1260 & RCR1272 only | Provides sidewall reinforcement and helps protect bottom of sidewall. |
| 1/2” x 3” Heat-treated free swinging blades | Free swinging protects from obstructions. Heat-treated offers longer life. |
| Splined blade bar hub | Allows for tight positive fit of stump jumper and blade bar to gearbox output shaft. |
| 10 Gauge stump jumper | Allows cutter to slide over obstructions protecting the gearbox output shaft. |
| High blade tip speed | Ensures clean cut. |
| Laminated tailwheel | Laminated material is long lasting in rough conditions and can’t go flat. |
| Heavy-duty spindle on tailwheel | 1 1/4” spindle gives the strength to protect tailwheel assembly. |
| Rubber guarding | Protect against flying debris. |
| Metal Guarding | Protects against flying debris. |
Specs
| Model | RCR1248 |
| Weight (With front & rear guard, shear bolt drive-line & laminated tire) |
413 lbs. |
| Hitch | Category l (Quick hitch ready) |
| Cutting Width | 48" |
| Overall Width | 53 5/8" |
| Overall Length (Including Tailwheel) |
89 1/8" |
| Deck Height | 7 1/4" |
| Cutting Height | 1 1/4" - 10" |
| Cutting Capacity | Grass, weeds & light brush |
| Recommended Tractor HP | 20-60 hp |
| PTO Speed | 540 rpm |
| Gearbox Rating HP | 60 hp |
| Gearbox (Speed up beveled gears) |
1:1.93 Speed-up Cast iron housing |
| Gearbox Lubrication & Capacity | 1.9 Pint (.9 L) With new Comer gearboxes - 1.1 Pint (0.52 L) of gear lube 80-90W EP |
| Deck Construction | 1 Piece reinforced deck |
| Deck Material Thickness | 12 Gauge |
| Skids | 12 Gauge (Formed in deck) |
| Skid Shoes | Not Available |
| Stump Jumper | Round Pan 10 ga x 24" |
| Blades (2) | 1/2" x 3" Heat treated alloy steel Free-swinging blades |
| Blade Bolts | Keyed with harden flat washer and lock nut |
| Blade Tip Speed | 13,256 fpm |
| Drive-line | ASAE Category 3 |
| Drive-line Protection Options | 1/2" Center shear bolt protection or center bolt 2 plate slip clutch |
| Tailwheel | 4" x 8" Laminated tire and yoke |
| Safety Guards | Rubber (standard front and rear) |
