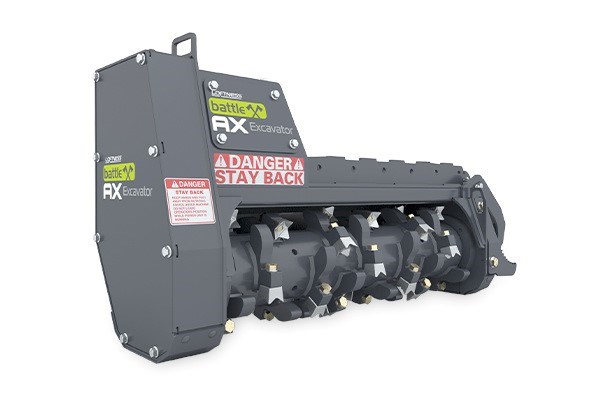

Loftness 51BX20

New Equipment / All Lines / Loftness / Vegetation Management / Mulching Heads / Battle Ax - 20- Series / 51BX20
Loftness 51BX20 for sale at White's Farm Supply

Double tap to zoom

Loftness 51BX20 for sale at White's Farm Supply

Battle Ax - 20- Series 51BX20

10,000-20,000 lb Excavators

The 20 Series Battle Ax is optimized for use on excavators ranging from 10,000 to 20,000 pounds. It features the popular depth gauge design and Loftness exclusive two-stage cutting chamber. This maximizes performance and gives you the ability to create some of the smallest particle sizes ... + Read More



Features

  • Depth Gauges
    The Battle Ax rotor design uses built-in depth gauges to control cutting depth, like raker teeth on a chainsaw.
  • Two-Stage Cutting Chamber
    Two shear bars allow the Battle Ax to produce a finer mulch with fewer passes. The primary shear bar is adjustable for controlling particle sizes.
  • Convenient Tooth Mounting
    The cutting teeth are mounted to the rotor with a single bolt. They can be easily reversed, replaced or removed on the jobsite using a common hex socket.
  • High-Performance Teeth Options
    Choose from 4-point beaver teeth, Quadco reversible planer teeth or Double Carbide Teeth.
  • Fixed-Displacement Gear Motor
    The 20 Series Battle Ax features a 45cc high-pressure gear motor for excavators with hydraulic systems ranging from 15 to 35.9 gallons per minute and up to 4,100 PSI (20 to 70 hydraulic horsepower). This reliable motor turns the rotor from 1,700 to 2,300 RPM.
  • 3-Band Belt Drive
    A three-groove banded belt system efficiently transfers power to the rotor.
  • Machined Anti-Wrap Bearing Protection
    Rotor ends are machine turned to mate with close tolerance, machined anti-wrap rings, which minimize debris in the bearing chamber.
  • Premium Strength Steel Housing
    The Battle Ax is constructed of high-strength steel to withstand some of the toughest operating conditions.
  • Steel Deflector Chains
    Running the entire length of the mulching attachment, steel deflector chains improve safety by reducing flying debris.
  • Optional Spade Hook/Hydraulic Thumb
    The spade hook is a useful tool for positioning material to be mulched. A hydraulic thumb is also optional for added versatility.
  • Multiple Mounting Options
    A variety of mounts are available for attaching the Battle Ax to any make of excavator. Blank, pin-on and pin grabber styles are available.
  • 13.5-Inch-Diameter Rotor
  • 1-3/4″ Piloted Double Taper Roller Bearings
  • 2-Year Warranty
    The Battle Ax comes standard with an industry-leading 2-year warranty.

Specs

Model 51BX20
Cutting Width 51" (1.3 m)
Recommended Excavator Weight Range (in Pounds) 15K-20K
Overall Width 66.25" (1.7 m)
Number of Teeth 32
Weight (without mount) 1,218 LBS (552.5 kg)
Crated Weight 1,317 LBS (597.4 kg)
Hydraulic Horsepower Range 25-50 Hydraulic HP
