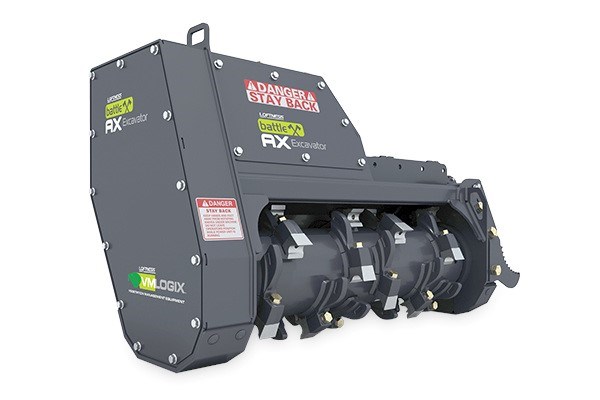

Battle Ax - 30 Series 51BX30

18,000-36,000 lb Excavators

The Loftness 30 Series Battle Ax is optimized for use on excavators ranging from 18,000 to 36,000 pounds. It features the popular depth gauge design and Loftness exclusive two-stage cutting chamber. This maximizes performance and gives you the ability to create some of the smallest partic... + Read More



Features

  • Depth Gauges
    The Battle Ax rotor design uses built-in depth gauges to control cutting depth, like raker teeth on a chainsaw.
  • Two-Stage Cutting Chamber
    Two shear bars allow the Battle Ax to produce a finer mulch with fewer passes. The primary shear bar is adjustable for controlling particle sizes.
  • Convenient Tooth Mounting
    The cutting teeth are mounted to the rotor with a single bolt. They can be easily reversed, replaced or removed on the jobsite using a common hex socket.
  • High-Performance Teeth Options
    Choose from three cutting tooth options:
    Quadco planer blades
    Hard-surface Quadco blades
    Double carbide teeth
  • Adjustable-Displacement Piston Motor
    The 30 Series Battle Ax features a 105cc adjustable displacement piston motor for excavators with hydraulic systems ranging from 20 to 60 gallons per minute and up to 6,000 PSI (45 to 150 hydraulic horsepower). This motor turns the rotor from 1,800 to 2,500 RPM and can be manually adjusted for fine-tuning performance on a variety of excavators.
  • Synchronous Belt Drive
    The positive drive, cog belt and sprocket design increases efficiency and requires less maintenance than other drive types.
  • Machined Anti-Wrap Bearing Protection
    Rotor ends are machine turned to mate with close tolerance, machined anti-wrap rings, which minimize debris in the bearing chamber.
  • Premium Strength Steel Housing
    The Battle Ax is constructed of high-strength steel to withstand some of the toughest operating conditions.
  • Steel Deflector Chains
    Running the entire length of the mulching attachment, steel deflector chains improve safety by reducing flying debris.
  • Optional Spade Hook/Hydraulic Thumb
    The spade hook is a useful tool for positioning material to be mulched. A hydraulic thumb is also optional for added versatility.
  • Multiple Mounting Options
    A variety of mounts are available for attaching the Battle Ax to any make of excavator. Blank, pin-on and pin grabber styles are available.
  • 17-Inch-Diameter Rotor
  • 2-3/16″ Piloted Double Taper Roller Bearings
  • 2-Year Warranty
    The Battle Ax comes standard with an industry-leading 2-year warranty.

Specs

Model 51BX30
Cutting Width 51" (1.3 m)
Recommended Excavator Weight Range (in Pounds) 18K-36K
Overall Width 66.375" (1.7 m)
Number of Teeth 26
Weight (without mount) 2,210 LBS (1,002.4 kg)
Crated Weight 2,360 LBS (1,070.5 kg)
Hydraulic Horsepower Range 45-150 Hydraulic HP
