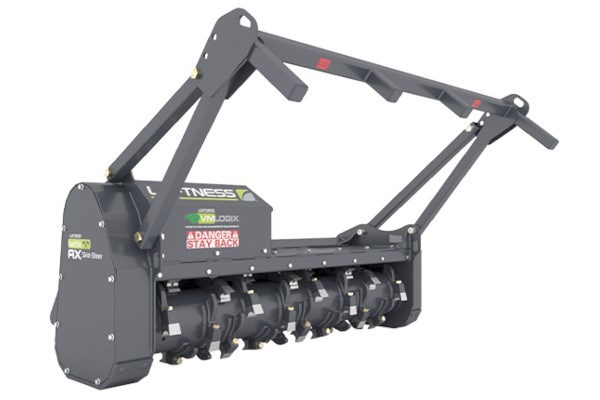

Battle Ax - S Series 61BS
Skid Steer / Compact Track Loader
This is the mulching head that changed it all. Designed for skid steers and compact track loaders with 28-62.9 GPM, the S Series Battle Ax optimizes mulching performance with its unique rotor design and Loftness exclusive two-stage cutting chamber. This design works better than any ... + Read More
Features
- Depth Gauges
The Battle Ax rotor design uses built-in depth gauges to control cutting depth, like raker teeth on a chainsaw. - Two-Stage Cutting Chamber
Two shear bars allow the Battle Ax to produce a finer mulch with fewer passes. The primary shear bar is adjustable for controlling particle sizes. - Convenient Tooth Mounting
The cutting teeth are mounted to the rotor with a single bolt. They can be easily reversed, replaced or removed on the jobsite using a common hex socket. - High-Performance Teeth Options
Choose from three teeth options:
Quadco planer blades
Hard-surface Quadco blades
Standard carbide teeth - Fixed-Displacement Gear Motor
The high-pressure gear motor option is a reliable, cost-effective workhorse. It operates at a constant RPM that provides an optimal balance between speed and torque. This system was designed for skid steers delivering 29-40 GPM at up to 4,300 PSI. (Rated up to 85 hydraulic horsepower.) - V-Drive Variable-Displacement Piston Motor
The V-Drive option uses a variable-displacement piston motor, which automatically shifts the rotor RPM from the highest speed to a lower range for increased torque, as needed. The result is less stalling and a shorter recovery time, helping operators to concentrate on the job instead of power settings and continuous head repositioning. This motor provides a more effective use of power as the head RPM increases under lighter loads, allowing operators to quickly slice through smaller or more flexible growth, as well as when back-dragging material on the ground. As larger trees, trunks and stumps are engaged, the motor increases the drive displacement to increase torque. It is designed for skid steers delivering 32-62.9 GPM at up to 6,000 PSI. (Rated up to 150 hydraulic horsepower.) - Synchronous Belt Drive
The positive drive, cog belt and sprocket design maximizes efficiency and requires less maintenance than other drive types. - Machined Anti-Wrap Bearing Protector
Rotor ends are machine turned to mate with close tolerance, machined anti-wrap rings, which minimize debris in the bearing chamber. - Adjustable Push Bar
Constructed with integrated, welded claw hooks, the bar helps push falling trees and brush away from the power unit, while also allowing them to be properly positioned for efficient feeding into the head. - Performance Monitoring
An integrated PSI gauge that monitors the hydraulic load is positioned for easy viewing from the skid steer cab. It helps keep the Battle Ax at the optimum hydraulic load for peak performance throughout an application. - Custom Hydraulic Control Valve
A high-pressure relief valve protects the Battle Ax from pressure spikes at the source. It also includes an anti-cavitation shutdown circuit. - Premium Strength Steel Housing
The S Series Battle Ax is designed for today’s heavier, more powerful skid steers and compact track loaders. All body components are laser cut from premium strength steel. Also, abrasion resistant steel is used in high-wear areas. - Replaceable Skid Shoes
- Steel Deflector Chains
Running the entire length of the mulching attachment, steel deflector chains improve safety by reducing flying debris. - Maximum Visibility
The Battle Ax is designed for maximum visibility from the skid steer cab, which increases safety, productivity and efficiency. - Universal Skid Steer Mount
The universal mount allows the Battle Ax to be easily used with any brand or model of skid steer or compact track loader. - Hydraulic Hose Routing
Hoses are right sized and routed to reduce the chance of binding, yet are long enough for a full range of motion without damage. Hoses are included, couplers are not.
A right-hand hose kit is optional for use on skid steers with hydraulic couplers on the right-hand side of the machine. - 17-Inch-Diameter Rotor
- 2-3/16″ Piloted Double Taper Roller Bearings
- Optional Bolt-In Liner
A bolt-in liner can be added for use in abrasive environments. - 2-Year Warranty
The Battle Ax comes standard with an industry-leading 2-year warranty.
Specs
| Model | 61BS |
| Cutting Width | 61" (1.55 m) |
| Overall Width | 79.1" (2.01 m) |
| Number of Teeth | 30 |
| Weight (with liner/without mount) | 2,604 LBS (1,181.2 kg) |
| Crated Weight | 2,831 LBS (1284.12 kg) |
| Hydraulic Horsepower Range | 50-150 Hydraulic HP |
| Fixed Displacement Gear Motor | Up to 4,300 PSI - 28-40 GPM |
| Variable-Displacement Piston Motor | Up to 6,000 PSI - 32-62.9 GPM |
