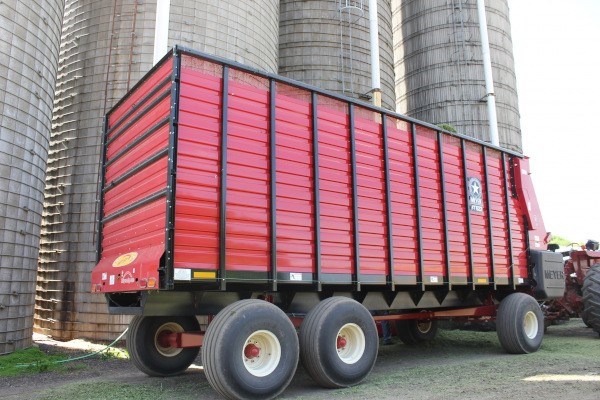

RT600 Front Unload Forage Box RT622
The Meyer RT600 Series Front Unload Forage Box features a 7'5" inside width, all steel frame, high speed - variable drive, HD bevel gear-drive and removable roof. Wagon, Cart or Truck Mount models are available. It offers more capacity, more speed and more options than any other forage box on the market. RT600's a... + Read More
Features
- Wagon - Trailer - Truck Mount options
- HD Steel Frame with tubular floor supports on 24" centers. 7'5" inside width for maximum capacity! New integrated top rail system eliminates the need for side supports when roof is removed.
- Removable Roof standard / open top optional
- Variable Speed RT belt drive standard equipment - featuring our new, high-efficiency bevel gear-drive system which offer clean-out speeds up to 17' / minute. New RT Auger Drive feature consistent auger speed based throughout the range.
- Spring-loaded roller chain tensioning w/ nylon paddle tightener on primary drive and auger drives
- Hydraulic In-Cab Control Option - The cab-controlled hydraulic drive provides a safe, convenient way to operate your RT Series front unload box. It also eliminates all belts and most roller chains and bearings associated with the manual belt drive! (requires 25 gpm min)
- HD 2" main drive shaft with machined drive sprockets - tough stuff!
- Wide Discharge - This 24" wide conveyor utilizes a pintle apron for an even discharge to your blower or bagger while reducing buildup commonly seen with roller chain conveyors. Chain hold-downs run full length and are standard equipment.
- Fold-Down Cross Conveyor Extension - This feature makes for easy approaches to the bagger or blower with less spillage while unloading. Standard on RT600 models.
- 18" Diameter drum augers in a tapered formation provide a smooth mat of feed to the discharge conveyor.
- Feather start controls including cross apron / augers / main apron. No jaw clutch starts like other brands!
- Solid Poly Floor - Meyer RT600 Forage Boxes come standard with a solid poly floor (no plywood)! This system reduces drag by approximately 30% plus provides much faster cleanout. Don't forget that all RT & RTX boxes have 100% steel floor supports too - no wood like many others.
- High capacity options include 6" taller roof package - Allow for easier filling on longer models and more capacity. Roof is removable as is the standard roof system!
- 4th beater is optional with 12" taller side package - This 12" taller side package is available with or without a roof. It is a perfect match when using a SP chopper for front filling or anytime you desire more capacity. 4th beater available with 12" taller side. (not available in conjunction with 6" taller roof)
- LED lighting is Standard
Specs
| Dimensions | RT622 |
| Floor Length | 22'6" |
| Overall Length | 25'8" |
| Inside Height (w/o roof) - std height | 6'3" |
| - high sides | 7'3" |
| Overall Height (w/o roof) | |
| top of side - std height | 94" |
| - high sides | 106" |
| *Less 4" truck & trailer mounts (except on XT1600 trailer) |
|
| Overall Height (w/roof) - wagon mt. - std height |
114.5" |
| - high sides | 126.5" |
| Inside Width | 89.5" |
| Overall Width w/conveyor extension up | 109.5" |
| Stringer Width/Height | |
| Truck/XT2200 Trailer Mount | 33.5"/6" |
| Wagon Mount | 42"/10" |
| Capacity (struck level) cu. ft. w/o roof - (6'3) std height |
1049 |
| - (7'3) high sides | 1217 |
| Capacity cu. ft (with roof) - (6'3) std height |
1288 |
| - (7'3) high sides | 1456 |
| Specifications | |
| Front Apron Drive Shaft | 2" |
| Tubular Upright Spacing | 24" |
| All Steel Frame - 24" centers (no wood) | 24" |
| HD Tubular Floor Supports | 2x2 |
| HD Top Rail Formed (no side supports needed) | Standard |
| Commercial Grade Geardrive (no worm gears) | Standard |
| Standard Features | |
| RT Variable Speed System - 0-17'/minute (PTO drive standard) | Standard |
| Apron Chains (heavy duty pintle) | 677X |
| Auger Feathering System & Conveyor Clutch/Safety Clutch | Standard |
| Cross Conveyor Chain Hold-Downs | Standard |
| Fold-Down Conveyor Extension w/ Lift Assist | Standard |
| 12" Higher Sides w/4th Beater System | Optional |
| Optional Features | |
| Hydraulic Front Drive System (in lieu of PTO) | Optional |
| Hydrarulic In-Cab Controls (in lieu of PTO) - includes hyd lift conveyor | Optional |
| 36" Fold-Down Cross Conveyor Extension (in lieu of standard 24") | Optional |
| Hydraulic Lift Option for Fold Down Cross Conveyor Extension | Optional |
| Roof Assembly (removable) | Standard |
| 6" High Roof Assembly (removable) - not available 12" higher sides | Optional |
| Roof Hood Assembly (right hand, open top units only) | Optional |
| Truck Mnt./Trailer Mnt./Wagon Mnt. | Optional |
| Tarp Systems (w/front enclosures) Front to Back Scissor Tarp (electric) Side to Side Roll Tarp (electric) |
Optional |
| Clad Tuff Fiberglass Sides & Back | Optional |
| Superslide, Solid Poly Floor (no plywood) | Optional |
