RTX600 Series Front Unload RTX626
The Meyer RTX600 Series Front Unload Forage Box is creme of the crop. The HD steel, 7'5" wide body holds a load and combined with other features like high sides, solid poly floor, HD aprons, 4th beater and cross conveyor extension - you understand this thing means business. 20, 22, 24, 26' lengths available for Wag... + Read More
Features
- Wagon - Trailer - Truck Mount
- HD steel frame with tubular floor supports on 16" centers. 7'5" inside width for maximum capacity! New integrated top rail system eliminates the need for side supports on open top models.

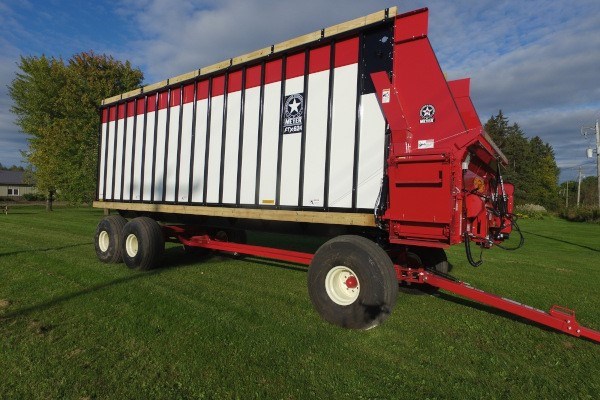

- Standard Package includes: High sides, 4th beater, fold-down conv extension (pictured here with optional clad tuff fiberglass sides)
- RTX comes standard as an open top / roof system optional
- Variable speed RT Belt Drive standard equipment - featuring our new, high-efficiency bevel gear-drive system capable of 17' / minute clean-out speed!
- spring loaded chain tensioning on all roller chains (main drive / auger drives)
- HD 2" main drive shaft with machined drive sprockets - tough stuff!
- 18" Diameter drum augers in a tapered formation provide a smooth mat of feed to the discharge conveyor / 4th beater standard on RTX series (pictured here with optional roof and basic hyd drive)
- 24" wide pintle chain apron provides an even discharge to your blower or bagger without the buildup associated with roller chain conveyors. Cross conveyor hold-downs and folding extension are standard equipment!
- Feather start controls including cross apron / auger / main apron. No jaw clutch engagements like other brands!
- Solid Poly Floor - high molecular virgin poly (not reground)!
- LED lighting standard
- Basic hydraulic or cab controlled hydraulic drive available
- Electric front to rear or side to side tarp packages available / front closures required
Specs
| Front Unload | RTX626 |
| Dimensions | |
| Floor Length | 26' 6" |
| Overall Length | 29'8" |
| Inside Height (w/o roof) - std height | |
| - high sides | 7'3" |
| Overall Height (w/o roof) | |
| top of side - std height | |
| - high sides | 106" |
| top of door pivot (RT/RTX200 only) std height | |
| high sides | 115" |
| Less 4" truck & trailer mounts (except on XT1600 trailer*) | |
| Overall Height (w/roof) - wagon mount version - std height | |
| - high sides | 126.5" |
| Inside Width | 89.5" |
| Overall Width w/conveyor extension up | 109.5" |
| Stringer Width/Height | |
| Truck/XT2200 Trailer Mount | 33.5"/6" |
| Wagon Mount | 42"/10" |
| Capacity (struck level) cu. ft. w/o roof | |
| - (6'3) std height | |
| - (7'3) high sides | 1433 |
| Capacity cu. ft (with roof) | |
| - (6'3) std height | |
| - (7'3) high sides | 1714 |
| Specifications | |
| Front Apron Drive Shaft | 2" |
| Tubular Upright Spacing | 16" |
| All Steel Frame - 24" centers (no wood) | Std 16" |
| HD Tubular Floor Supports | 2x2 |
| HD Top Rail Formed (no side supports needed) | Std |
| Commercial Grade Geardrive (no worm gears) | Std |
| Standard Features | |
| RT Variable Speed System - 0-17'/minute (PTO drive standard) | Std |
| Apron Chains (heavy duty pintle) | 667X |
| Spring Loaded/Torsion Style Apron Tightener (RT/RTX200) | Std 226 |
| Direction Control System (patented) | |
| Front to Rear Selection with No Coupler Change | Std 226 |
| Auger Feathering System & Conveyor Clutch/Safety Clutch | Std |
| Cross Conveyor Chain Hold-Downs | Std |
| Fold-Down Conveyor Extension w/ Lift Assist | Std |
| Superslide, Solid Poly Floor (no plywood) (RT/RTX200, RTX600) | Std |
| 12" Higher Sides w/4th Beater System | Std |
| Rear Gate Delay System (RTX200) | Std 226 |
| Optional Equipment | |
| Hydraulic Front Drive System (in lieu of PTO) | Opt |
| Hydrarulic In-Cab Controls (in lieu of PTO) - includes hyd lift conveyor | Opt |
| 36" Fold-Down Cross Conveyor Extension (in lieu of standard 24") | Opt |
| Hydraulic Lift Option for Fold Down Cross Conveyor Extension | Opt |
| Roof Assembly (removable) | Opt |
| Roof Hood Assembly (right hand, open top units only) | Opt |
| Rear Grain Kit (RT/RTX200 only) | Opt 226 |
| False Front Gate for Grain Kit | Opt |
| Truck Mount/Trailer Mount/Wagon Mount | Opt |
| Tarp Systems (w/front enclosures) | |
| Front to Back Scissor Tarp (electric) | Opt |
| Side to Side Roll Tarp (electric) | Opt |
| Clad Tuff Fiberglass Sides & Back | Opt |
