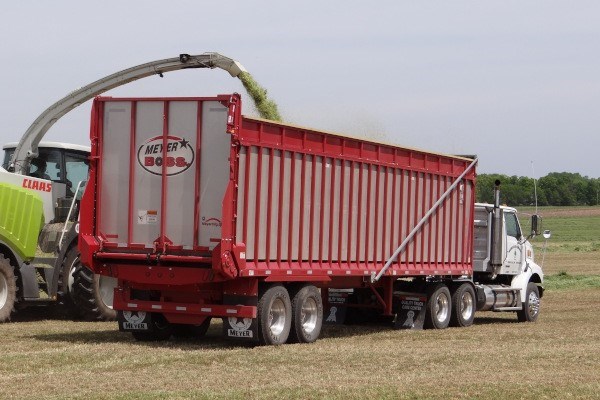

9100 RT BOSS Semi "Ag" Trailer 9140RT Trailer
Meyer RT BOSS Semi "Ag" Trailers are available in 30, 36 and 40' lengths. The BOSS RT provides fast, simple and safe transport and unloading of your forage. Exclussive hydraulic dual geardrive technology and a heavy duty steel frame provide years of service with minimal maintenance! Options include: barn door gat... + Read More
Features
- FAST – STABLE – SAFE unloading of your materials (no hoist) - Approximately 1 minute at 40 gpm!
- 30, 36 or 40’ models available / interior width 98” for max capacity per running foot!
- HD fully welded frame @ 16” centers to handle heavy loads while maintaining a low center of gravity!
- Dual Hyd Geardrive System offers efficient, fast unloading with no roller chains / big 2 3/8” driveshaft
- 1” hydraulic plumbing with JIC front connections
- Stainless Steel side panels provide practicality, corrosion resistance and good looks.
- Solid poly floor – high molecular virgin (not reground!)
- Top Pivot rear door standard with gate delay - Barn Doors with air closure optional
- LED Signal/marker/clearance lights, DOT tape and rear bumper standard (pictured w/ optional 18 light pkg)
- Integrated dual front viewing window / elevated “BOSS” plate up front for easy hookup / storage
- Farm name on box sides standard
- High Gloss urethane paint finish / red standard - black optional
- Electric front to rear or side to side tarp packages available
- Effective Grain Kit attachment option / quick – easy – multi-purpose!
- Reversing apron package available for bale hauling.
- Set back axles / air lift axles and tire options available
- It Feels Right!
Meyer takes pride in producing a quality product because we know you take pride in your investment!
Specs
| DIMENSIONS | 9140RT Trailer |
| Inside Length | 40' |
| Inside Width | 98" |
| Inside Height - no extension | 72" |
| Inside Height w/14" extension | 85.5" |
| Overall Length | 41'1" |
| Overall Width | 102" |
| Overall Height - no extension (top of gate) * | 147" |
| Overall Height w/14" extension (top of gate) * | 159" |
| Overall Side Height - no ext. / ext. * | 130.5/144.5" |
| Stringer Width (Truck/Trailer Mount) | NA |
| Capacity (struck level) Cu. Ft. - w/o ext. | 1920 |
| Capacity (struck level) Cu. Ft. - w14" ext. | 2305 |
| SPECIFICATIONS | |
| Maximum Net Load (off road rating) | 30 ton |
| Apron Chains (pintle) | 667XH |
| Rear Drive Shaft | 2-3/8" HD SOLIDSHAFT |
| Power Source / DIRECT GEARDRIVE | hyd-dual |
| Upright Spacing | 16" on ctr |
| Upright / Cross member Construction | 2x2 tubing |
| Enclosed Side Frame/Cross Member Union | STD |
| Unloading Time (Dependent of Hyd. System) | 65 sec |
| FEATURES | 9140T |
| Clad-Tuff Fiberglass Woven Side Panels | NA |
| Stainless Steel Side Panels | STD |
| Solid Poly Floor - High Molecular | STD |
| Rear Gate Delay System *new RT design!! | STD |
| Automatic Rear Door Unlatch / Latch | STD |
| Hydraulic Drive | STD |
| Double Viewing Window in front gate | STD |
| Rear Transport Lights - LED (new location) | STD |
| Marker/Clearance Lights (LED) & D.O.T. Tape | STD |
| Personalized Farm Name on Sides | STD |
| OPTIONS | |
| 14" Removable Side Extension (screen or solid) | OPT |
| +includes fold-down front ext. except w/tarp | |
| Double Center Opening Doors Hyd/Air (Barn Doors) | OPT |
| Grain Kit / Quick Attach for Top Pivot Door | OPT |
| Grain Kit / Quick Attach for Barn Door Gate | OPT |
| Side-mtd, LED Turn Signals in addition to std | OPT |
| Reversing Apron Feature | OPT |
| Set Back Axle Design / Air Lift Pusher Axles | OPT |
| Side Hood Deflector/backstop (RH side) | OPT |
| Black paint in lieu of Red | OPT |
| Truck Mount Kit w/Steel Fenders | STD |
| Factory Install of Truck Mount Kit | STD |
| Wagon/Trailer Mount Kit | NA |
| TARP SYSTEMS | |
| Front to Back Scissor Tarp (electric) | OPT |
| Side-to-Side Roll Tarp (electric) | OPT |
