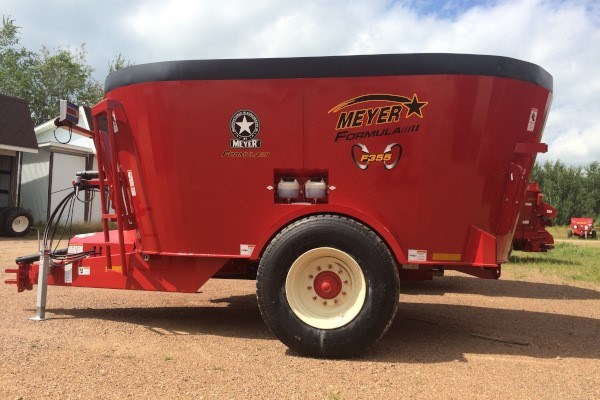

Small Frame F355
The Meyer F355 and F470 Formula Twin Screw Mixers provide big value in a small package. The low profile units provide capacities up to 520 cubic feet with a narrow profile which is often much more convenient than single screw designs. The single speed design provides fast, efficient processing of your ration includ... + Read More
Features
- The Formula to a good ration starts with the basics. Precisely engineered tank walls, baffles and screws provide accuracy and consistency that you expect!
- Precisely Engineered Augers - propel your ration up the center of the auger and then down along the outside walls for fast processing while maximizing end-to-end movement between the 2 screws.
- Lead Edge Scraper is adjustable and replaceable, it is responsible for initiating efficient feed movement in the Formula Mixer (Heat treated - high carbon steel).
- Auger Discharge Kicker Arm (right side of graphic) provides an extra sweep with every revolution, allowing smoother feedout in less time!
- Unique 3 piece knife design saves you time and money! This system offers added strength, simple adjustability and reduced replacement costs. (tungsten carbinate coated knives)
- Step Baffle System aids in feed movement, reduces horsepower requirements while eliminating overprocessing! Made from High Carbon Steel to reduce wear.
- Direct, In-Line Drive System is standard on the F355 & F470. It provides 40 rpm max speed through a robust planetary drive system. PROCESS FAST / UNLOAD FAST!
- 540 RPM standard / 1000 RPM optional - both equipped with shear bolt protection
- This simple, integrated subframe provides the lowest possbile load height with maximum strength. 3 point weighing is standard on small frame units.
- (2) 385/65x22.5 recap tires standard / durable tires that are easily accessbile if replacement is required
- All Door Tracks are poly lined for reduced wear and stress. They also provide reduced freeze up issues and easy replacement!
- Hay Stops are double acting and easily adjustable for tuning when processing long stemmed material.
- Belt Capacity Extension kits are avaiilable, they generally add about 10% to mixer capacity (Optional)
- Stainless Steel Side & Baffle Liners as well as Heat-Treated Auger Flighting available as an option for high usage applications.
- Meyer offers a wide variety of scalehead options from Digi-Star and Avery Weightronics. Weigh bars and junction box come standard with all Formula mixers.
- All Meyer Formula mixer wieigh product in the mixer tub and the conveyor - unlike many that fail to weigh product already on the conveyor system.
- Front Door Conveyor Options 1: Flat Front Belt Conveyor (chain avail) - this coneyor provides smooth, quiet transfer off feed. Hyd shuttle system keeps feed away ffrom the mixer.
- Front Door Conveyor option 2: Belt Incline Conveyor (chain avail) - this versatile system allows you to unload out the incline or flat side. Silky smooth delivery in 24, 36, 48 & 60
- Side Door Option 1: Simple 12" belt discharge - pictured here with optional door frame magnet set.
- Side Door Option 2: Hydraulic Folding Slide Tray with magnets
- Side Door Option #3 - belt discharge conveyor (chain available)
- Front Platform (in lieu of standard ladder) - only available on front door models. Access from Left or Right side!
- Tank Magnet System
Specs
| MODEL - DIMENSIONS (INCHES) | F355 |
| Overall Length - side door / frt door | 215"/245" |
| Mixing Chamber Length | 169" |
| Overall Height (Standard Axle) | |
| Tire Size (Quantity) | 385/65R22.5 (2) |
| Optional Tire Size (Quantity) | |
| Base Machine | 84" |
| Belt Extensions | 90" |
| Hay Retention Ring | 90" |
| Tread Width | 98" |
| Transport Width - frt conveyor / side conveyor w/36" ext. | 98"/110" |
| Max Discharge Reach | |
| Frt Cross Conveyor - flat belt | 7" |
| Frt Cross Conveyor - belt incline-24"/36"/48" | 20"/26"/35" |
| Frt Cross Conveyor - chain incline-24"/36"/48" | 17"/29"/40" |
| Side Conveyor-24"/36"/48"/60"/72" | 22"/33"/45"/56"/67" |
| Side Slide Tray | 5" |
| Side Belt Extension | 3" |
| Max Discharge Height | |
| Frt Cross Conveyor - flat belt | 20.25" |
| Frt Cross Conveyor - belt incline-24"/36"/48" @ 45deg. | 38"/44"/52" |
| Frt Cross Conveyor - chain incline-24"/36"/48" @ 45deg | 38"/47"/56" |
| Side Conveyor-24"/36"/48"/60"/72" @45deg | 34"/43"/51"/60"/68" |
| Side Slide Tray | 8" |
| Side Belt Extension | 16" |
| SPECIFICATIONS | |
| Mixing Capacity | |
| Cubic Feet - no extension/with extenion | 355/400 |
| Maximum Net Load - pounds | 12,000 |
| Augers | |
| Number | 2 |
| Diameter | 68" |
| RPM - standard / high speed | 40 |
| Upper Flighting Thickness | 1/2" |
| Lower Flighting Thickness | 5/8" |
| Knives - adjustable - (Standard/Max Available) | 4/7 |
| Drive | |
| Planetary | In-Line Drive |
| PTO Drive | 540 rpm / 1000 opt |
| Protection | shear-bolt |
| Discharge | |
| Door Opening - Front | 35" x 40" |
| Side | 35" x 40" |
| Rear | n/a |
| Conveyor Width - front/side | 30" / 36" |
| Front Cross Conveyor Travel - left or right | 8" |
| Tub and Trailer Construction | |
| Floor Thickness | 1/2" |
| Sidewall Thickness | 1/4" |
| Trailer or Subframe | single-axle |
| - Optional Axle | |
| Spindle Diameter | 2 7/8" |
| Scale System | 3-point |
| Tongue Weight - % gross | 10% |
| Tractor Requirement - PTO HP | 75 |
