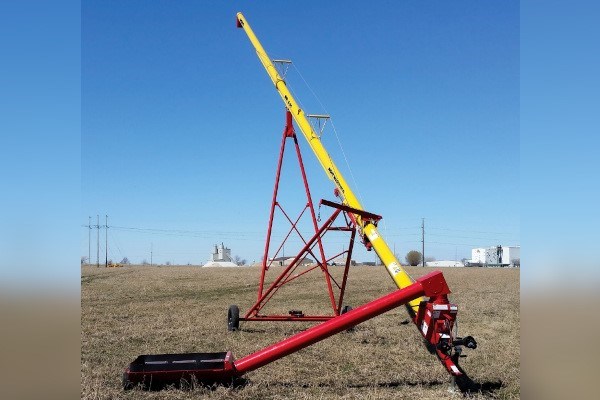

MK 8 Auger MK 8-61
Built for efficiency, the MK 8 Auger offers advantages like Wear Edge Technology™, a powder coat paint finish and A-frame undercarriage. Available in 51’ to 71’ lengths, the MK 80 is designed to make moving your grain faster and easier – and your operation more productive.
Features
- Available in 51', 61' and 71' lengths
- Up to 3,900 bph
- A-frame design for maximum stability
- Trussing provides maximum support with full bin reach
- Choice of mechanical or hydraulic swing auger drives
- Equipped with heavy-duty constant velocity (CV) PTO shaft to eliminate vibrations for smoother running and less stress on the drive train
- Wear EdgeTM flighting at critical grain transfer points (hopper, swing and removable boot flight) to improve auger performance and durability
- Spring loaded safety discharge door on intake hopper guards against main auger overloading
- Removable boot flight with Wear EdgeTM to improve performance and durability of lower flighting
Maximum support
Trussing provides maximum support with full bin reach
Wear Edge Technology™
Westfield developed Wear Edge Technology™ to extend the life of the flighting. By providing an extra layer of steel welded to the edge on critical wear points, the flighting lasts longer and needs to be replaced less often – saving you time and money
Powder coat paint
Westfield uses a durable powder coat paint for a strong, long lasting finish that looks good and protects against rust
A-frame undercarriage
The MK8 Series features an A-frame undercarriage to withstand bowing and maintain rigid alignment during heavy loads
Move how your want to
Choice of mechanical or hydraulic swing auger drives
Eliminate vibration
Equipped with heavy-duty constant velocity (CV) PTO shaft to eliminate vibrations, for smoother running and less stress on the drivetrain
Prevent unwanted unloading
Spring-loaded safety discharge door on intake hopper prevents main auger from overloading
Specs
| MODEL | MK 8-61 |
| TUBE GAUGE | 14 GA Welded Steel |
| MAIN FLIGHTING | 10 GA Stretched & Welded |
| WEAR EDGE TECHNOLOGY™ (REINFORCED FLIGHT) | 10 GA Ribbon Welded Wear EdgeTM on Critical Grain Transfer Points including the Intake Hopper Flighting, Initial Incline Flighting & Boot Flighting |
| FLIGHTING SHAFT | 1.66" x 11 GA Tubing |
| PSI REQUIRED TO RAISE AUGER | 950 PSI |
| PTO LINE DRIVE | 14 Series with 5/16" Shear Bolt |
| HP REQUIRED | 45 |
| TUBE TRUSSING | 5/16" Aircraft Type Galvanized Cable |
| TRACKING | High Yield 11 GA Roll Formed |
| TRACK SHOE | Double 2 ¾" Rollers |
| UNDERCARRIAGE | 3" x 11 GA Frame |
| AXLE | 2 ½" x 2 ½" x 1/8" Wall Square Tubing |
| HUBS & WHEELS | 4 Bolt Agricultural Type Hubs - 15" Wheels |
| WHEEL TREAD | 112" |
| HYDRAULIC LIFT | One 4" Cylinder with 5/16" Aicraft Cable |
| TRANSPORT HEIGHT | 13' 6" |
| TIRES REQUIRED | 15" Agricultural Tires |
| *STANDARD HOPPER HEIGHT | 10 ½" |
| APPROXIMATE HYDRAULIC FLUID REQUIRED TO RAISE AUGER | 7.5 Litres |
