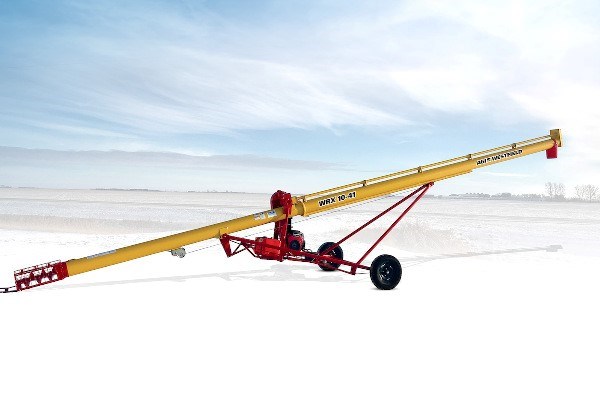

WRX Truck Auger WRX10-41
er will help keep your farm running smoothly during its busiest seasons. Take advantage of a broad selection of lengths, the choice of an 8” or 10” tube diameter and five different drive options to suit your needs.
Features
Winch
Complete with an automatic brake, the hand winch is sized and geared to match each specific auger - giving you the power to raise and lower your auger manually.
Flighting
The WRX Series uses one-bolt flight connections to ensure the flighting maintains proper alignment for smooth operation. The 8" models feature a round flighting connection and the 10" models use a square connection.
Solid Tube Drive Guard
This completely enclosed driveline offers a cleaner look and better protection from the elements. This helps keep your driveline intact for longer, preventing costly repairs. Wood Bearings can still be replaced with split bearings.
Wear Edge TechnologyTM
Wear Edge Technology™ extends the life of your flighting, providing an extra layer of steel welded to critical wear points. As a result, flighting lasts longer and needs to be replaced less often – saving you time and money.
Gearbox
Our gearboxes have forged steel gears with tapered roller bearings running in oil for years of dependable service.
Intake
The shielded auger intake has a long, one-pin, quick-remove clevis that is easily replaced. Intake flight has welded Wear Edge Technology™ for long life with speciallow pitch for proven added capacity. Greaseable bushing centers flight reducing vibration and wear.
Lubricated Upper Drive
Heavy-duty hardened steel sprockets and high-speed roller chain are sized to match auger length and diameter. Lubricated upper drive extends the life of sprockets and drive chain.
Undercarriage
Undercarriages of heavy steel tubing are designed for each specific auger length for better balance and stability. Upper lift arms sit back from the axle and quickly tuck away for excellent bin eave clearance. Wide axles provide added stability. High-speed wheels with cast iron hubs and tapered roller bearings come standard.
DRIVE OPTIONS:
- MD Motor Drive
The engine mounts crosswise for easy starting from the side of the auger. The motor mount is self-leveling at all auger positions keeping the motor at the correct working angle. The double belt drive with adjustable tension provides better traction and can be easily replaced. - EMD Electric Motor Drive
The motor mounts firmly to the gearbox and auger tube, keeping it in place and preventing damage. To provide the best possible traction, our models up to 41' have been retrofitted with a double belt drive, while our models of 46' or greater feature a triple belt drive. - PTO-SD Shaft Drive
The gearbox is connected directly to the driveshaft and offers the convenience and flexibility of using it for left or right hand drive. The PTO-SD comes with a non-separable 60" PTO driveline that extends to 80" and includes a driveline transport saddle to make moving the unit easier. - PTO-BD Belt Drive
The belt drive runs from the gearbox to the jackshaft near the auger wheels - keeping the auger intake away from the tractor, allowing for more working room and longer bin reach. The drive can be positioned to left or right-hand drive and the non-separable 48" PTO can be extended to 68" and is guided by an anti-belt-whip. A driveline saddle holds the drive in place while in transport. - Hydraulic Drive
The hydraulic drive auger option uses the tractor's hydraulics to run and has clips to hold hydraulic hoses during use and transport. This drive option provides a smooth, trouble-free operation.
Specs
MODEL | WRX10 - 41 |
TUBING GAUGE | 12 GA |
TUBE CONNECTORS | Heavy-duty 3/16" Angle Flange |
MAIN FLIGHTING | 9" OD x 7 GA Stretched + Welded |
INTAKE FLIGHTING | 10 GA Welded with Wear Edge Technology™ Lower Pitch for High Capacity |
FLIGHTING SHAFT | High Strength 2" OD x 11 GA Tubing |
DRIVESHAFT | 1-¼" OD x 11 GA Tubing |
DRIVESHAFT BEARINGS | 1-¼" Oil Impregnated Hardwood Bearings |
TUBE TRUSSING | N/A |
TRACK | High Yield 11 GA Roll Formed |
TRACKSHOE | Single 2-¾" Steel Roller |
TRANSPORT/UNDERCARRIAGE | 2-½" x 14 GA A-Frame |
AXLE | 2" x 11 GA Tubing |
HUBS & WHEELS | 4 Bolt Agricultural Type Hubs, 15" Wheel |
TIRES | 15" Agricultural Tires |
LIFT CABLE | ¼" Aircraft Type Galvanized Steel Cable |
TOP DRIVE | #80 Roller Chain & Hardened Steel Sprockets |
TOP DRIVE BEARINGS | 1-¼" Pillow Block |
WINCH | Reduction Geared with Automotive Brake |
GEARBOX | Formed Steel Gears with Tapered Roller Bearings |
CAPACITY - DRY WHEAT OR CORN, AUGER ½ RAISED | Up to 4,800 BPH |
Disclaimer: The WRX series auger was proudly designed to handle dry, free-flowing grains up to a maximum density of 65 lb/bu (52 lb/cf). Any usage of this auger outside of this is not authorized by AGI Westfield |
