Westfield MKX2 10-63

New Equipment / All Lines / Westfield / Portable Augers / MKX2 Auger / MKX2 10 / MKX2 10-63

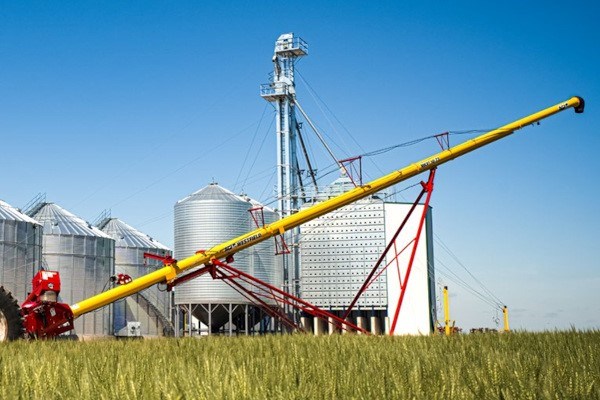

Westfield MKX2 10-63 for sale at White's Farm Supply

Double tap to zoom

Westfield MKX2 10-63 for sale at White's Farm Supply

MKX2 10 MKX2 10-63

• 10” Diameter
• 53’ – 83’ Lengths
• Up to 6,000 bph
• Available in both Scissor lift and a-frame



Features

KEY FEATURES

  • New open discharge spout decreases horsepower requirements
  • Aircraft cable trussing
  • Stable A-frame support (53'-83')
  • Wide standing axles



OPTIONS

  • Hydraulic hopper winch
  • Electric and hydraulic power swing
  • Reverser kit
  • Corn screen
  • Poly flex spout
  • Right angle drive
  • LED work lights

Specs

MODEL MKX2 10-63
TUBE GAUGE 12 ga
TUBE CONNECTORS Heavy-duty 3/16" (0.5 cm) angle flange
MAIN FLIGHTING 9" (22.9 cm) OD x 7 ga stretched and welded with Wear Edge TechnologyTM on critical points
WEAR EDGE TECHNOLOGYTM (REINFORCED FLIGHT) 1/4" (0.6 cm) plus 10 ga ribbon weld = 5/16" (0.8 cm) Wear Edge TechnologyTM on critical grain transfer points
FLIGHTING SHAFT High strength 2" (5.1 cm) OD x 11 ga tubing square flight connection
UPPER BEARING 2" (5.1 cm) taper roller bearing assembly
LOWER BEARING 1 1/2" (3.8 cm) pillow block greaseable ball bearing
TUBE TRUSSING 5/16" (0.8 cm) aircraft type galvanized steel cable
HYDRAULIC LIFT Single 4" (10.2 cm) cylinder with 5/16" (0.8 cm) aircraft cable
UNDERCARRIAGE 3" (7.6 cm) x 11 ga A-frame
AXLE 2 1/2" (6.4 cm) x 2 1/2" (6.4 cm) x 1/8" (0.3 cm) wall square tubing
HUB 4-bolt agricultural type
TIRES 15" (38.1 cm)
PTO SHAFT 14E constant velocity with 5/16" (8 mm) shear bolt
PARKING JACK 2000 lbs (907.2 kg) side wind
SPROCKET & CHAIN Hardened tooth sprocket with #60 chain
LOW PROFILE HOPPER DIMENSIONS 60" (152.4 cm) length x 40" (101.6 cm) width x 10" (25.4 cm) height with flat free tires
PSI REQUIRED TO RAISE AUGER 1200 psi (82.7 bar)
HP REQUIRED (WITH DRY WHEAT) 50-60 hp
WHEEL TREAD 112" (2.8 m)
TRANSPORT HEIGHT (18" HITCH) 13' 6" (4.1 m)
