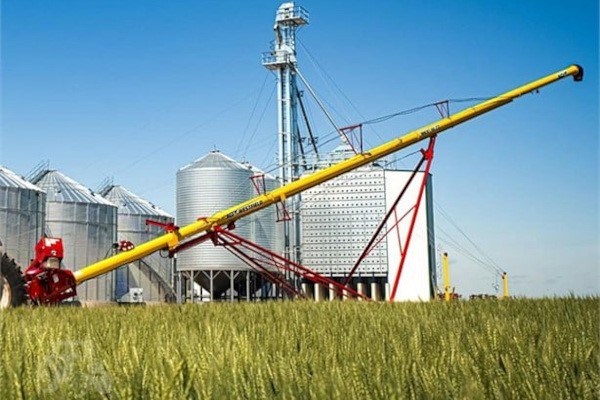

Westfield MKX2 10-73

Double tap to zoom

• 10” Diameter
• 53’ – 83’ Lengths
• Up to 6,000 bph
• Available in both Scissor lift and a-frame

KEY FEATURES

OPTIONS

MODEL	MKX2 10-73
TUBE GAUGE	12 ga
TUBE CONNECTORS	Heavy-duty 3/16" (0.5 cm) angle flange
MAIN FLIGHTING	9" (22.9 cm) OD x 7 ga stretched and welded with Wear Edge TechnologyTM on critical points
WEAR EDGE TECHNOLOGYTM (REINFORCED FLIGHT)	1/4" (0.6 cm) plus 10 ga ribbon weld = 5/16" (0.8 cm) Wear Edge TechnologyTM on critical grain transfer points
FLIGHTING SHAFT	High strength 2" (5.1 cm) OD x 11 ga tubing square flight connection
UPPER BEARING	2" (5.1 cm) taper roller bearing assembly
LOWER BEARING	1 1/2" (3.8 cm) pillow block greaseable ball bearing
TUBE TRUSSING	5/16" (0.8 cm) aircraft type galvanized steel cable
HYDRAULIC LIFT	Single 4" (10.2 cm) cylinder with 5/16" (0.8 cm) aircraft cable
UNDERCARRIAGE	3.5" (9 cm) x 11 ga HSS tubing
AXLE	2 1/2" (6.4 cm) x 2 1/2" (6.4 cm) x 1/8" (0.3 cm) wall square tubing
HUB	4-bolt agricultural type
TIRES	15" (38.1 cm)
PTO SHAFT	14E constant velocity with 5/16" (8 mm) shear bolt
PARKING JACK	2000 lbs (907.2 kg) side wind
SPROCKET & CHAIN	Hardened tooth sprocket with #60 chain
LOW PROFILE HOPPER DIMENSIONS	60" (152.4 cm) length x 40" (101.6 cm) width x 10" (25.4 cm) height with flat free tires
PSI REQUIRED TO RAISE AUGER	1400 psi (96.5 bar)
HP REQUIRED (WITH DRY WHEAT)	55-65 hp
WHEEL TREAD	118" (3 m)
TRANSPORT HEIGHT (18" HITCH)	14' 8" (4.5 m)
