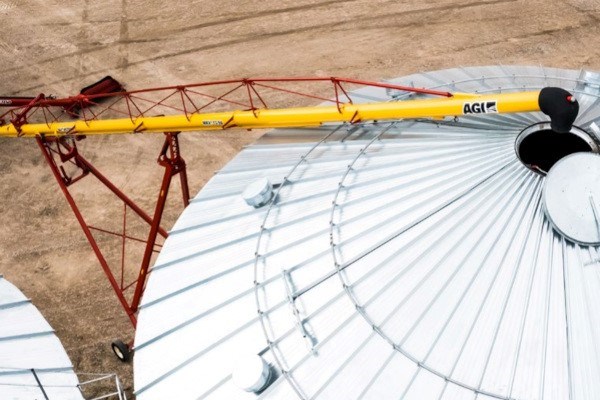

Westfield MKX2 13-114

Double tap to zoom

• 13” Diameter
• 64’ – 114’ Lengths
• to 11,000 bph
• Available in both Scissor lift and a-frame

FEATURES

Options

A-Frame Model	MKX2 13-114
TUBE GAUGE	12 ga
TUBE CONNECTORS	Heavy-duty ¼" (0.6 cm) angle flange
MAIN FLIGHTING	11 3/4" (29.8 cm) OD x 1/4" (0.6 cm) stretched and welded with Wear Edge TechnologyTM on critical points
WEAR EDGE TECHNOLOGYTM (REINFORCED FLIGHT)	1/4" (0.6 cm) plus 10 ga ribbon weld = 5/16" (0.8 cm) Wear Edge TechnologyTM on critical grain transfer points
AR BOOT FLIGHT	1/4" (0.6 cm)
FLIGHTING SHAFT	High strength 3" (7.6 cm) OD x 11 ga tubing square flight connection
UPPER BEARING	2" (5.1 cm) taper roller bearing assembly
GREASELESS HANGER BEARING FOR BOOT (NEW)	1 15/16" (4.9 cm) ID, triple seal
LOWER BEARING	Custom 2" (5.1 cm) taper roller bearing assembly
TUBE TRUSSING	Combination 2 1/2" (6.4 cm) x 11 ga steel tubing & 3/8" (1 cm) galvanized cable
HYDRAULIC LIFT	Dual 4 1/2" (11.4 cm) cylinders with 3/8" (1 cm) aircraft cable
UNDERCARRIAGE	4" (10.2 cm) x 8" (20.3 cm) HSS tubing
AXLE	3 1/2" (8.9 cm) x 3 1/2" (8.9 cm) square tubing
HUB	6-Bolt agricultural type
TIRES	16' (40.6 cm) TRF
PTO SHAFT	55E constant velocity with 2-bolt shear
PARKING JACK	5000 lbs (2268 kg) side wind
SPROCKET & CHAIN	Hardened tooth sprocket with HD #80 chain
LOW PROFILE HOPPER DIMENSIONS	60" (152.4 cm) length x 40" (101.6 cm) width x 10" (25.4 cm) height with flat free tires
PSI REQUIRED TO RAISE AUGER	2100 psi (144.8 bar)
HP REQUIRED (WITH DRY WHEAT)	140-185 hp
WHEEL TREAD	146" - 182" (370.8 cm - 462.3 cm)
TRANSPORT HEIGHT (18" HITCH)	14' 5" (4.4 m)
