Westfield MKX2 13-64

New Equipment / All Lines / Westfield / Portable Augers / MKX2 Auger / MKX2 13 / MKX2 13-64

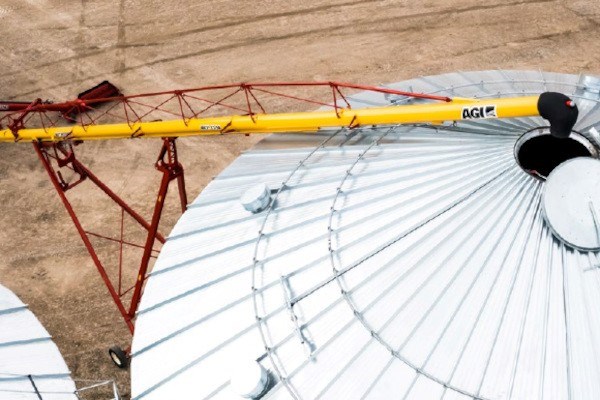

Westfield MKX2 13-64 for sale at White's Farm Supply

Double tap to zoom

Westfield MKX2 13-64 for sale at White's Farm Supply

MKX2 13 MKX2 13-64

• 13” Diameter
• 64’ – 114’ Lengths
• to 11,000 bph
• Available in both Scissor lift and a-frame



Features

KEY FEATURES

  • New open discharge spout decreases horsepower requirements
  • Aircraft cable trussing
  • Stable A-frame support (64'-114')
  • Wide standing axles
  • Rigid steel trussing (84' and up)
  • Strong scissor-lift frame (74' 114')



Options

  • Steerable axles
  • Hydraulic hoper winch
  • Electric and hydraulic power swing
  • X-Tend hopper
  • X-Over hopper
  • Poly flex spout
  • Speed reducer-reverser
  • Reverser kit
  • Corn screen
  • Right angle drive
  • Transport lights
  • LED work lights

Specs

A-Frame Model MKX2 13-64
TUBE GAUGE 12 ga
TUBE CONNECTORS Heavy-duty ¼" (0.6 cm) angle flange
MAIN FLIGHTING 11 3/4" (29.8 cm) OD x 1/4" (0.6 cm) stretched and welded with Wear Edge TechnologyTM on critical points
WEAR EDGE TECHNOLOGYTM
(REINFORCED FLIGHT)		 1/4" (0.6 cm) plus 10 ga ribbon weld = 5/16" (0.8 cm) Wear Edge TechnologyTM on critical grain transfer points
AR BOOT FLIGHT 1/4" (0.6 cm)
FLIGHTING SHAFT High strength 3" (7.6 cm) OD x 11 ga tubing square flight connection
UPPER BEARING 2" (5.1 cm) taper roller bearing assembly
GREASELESS HANGER
BEARING FOR BOOT (NEW)		 1 15/16" (4.9 cm) ID, triple seal
LOWER BEARING Custom 2" (5.1 cm) taper roller bearing assembly
TUBE TRUSSING 3/8" (1 cm) aircraft type galvanized steel cable
HYDRAULIC LIFT Dual 4" (10.2 cm) single acting cylinders with 5/16" (0.8 cm) aircraft cable
UNDERCARRIAGE 4" (10.2 cm) x 11 ga A-frame
AXLE 3" (7.6 cm) x 3" (7.6 cm) square tubing
HUB 6-Bolt agricultural type
TIRES 16' (40.6 cm) TRF
PTO SHAFT 35E constant velocity with 3 /8" (1 cm) shear bolt
PARKING JACK 5000 lbs (2268 kg) side wind
SPROCKET & CHAIN Hardened tooth sprocket with HD #80 chain
LOW PROFILE HOPPER DIMENSIONS 60" (152.4 cm) length x 40" (101.6 cm) width x 10" (25.4 cm) height with flat free tires
PSI REQUIRED TO RAISE AUGER 1600 psi (110.3 bar)
HP REQUIRED (WITH DRY WHEAT) 85-100 hp
WHEEL TREAD 124" (315 cm)
TRANSPORT HEIGHT (18" HITCH) 13' 8" (3.9 m)
