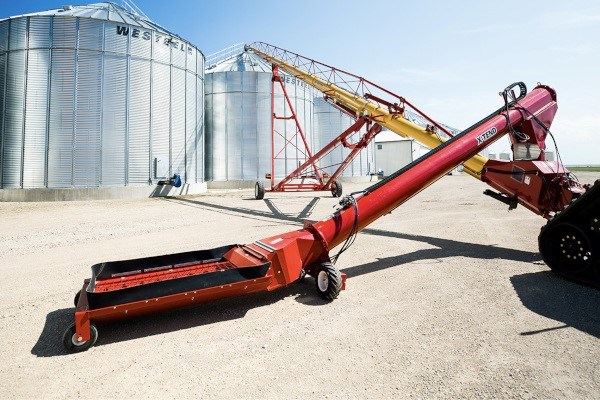

Westfield MKX2 16-105

Double tap to zoom

• 16” Diameter
• 85’ – 125’ Lengths
• Up to 23,000 bph
• A-frame

KEY FEATURES

OPTIONS

MODEL	MKX2 16-105
TUBE GAUGE	10 ga
TUBE CONNECTORS	1/4" (0.6 cm) angle flange
MAIN FLIGHTING	15" (38.1 cm) x 1/4" (0.6 cm) stretched & welded
WEAR EDGE TECHNOLOGY TM (REINFORCED FLIGHT)	1/4" (0.6 cm) main flighting with Wear Edge TechnologyTM on critical grain transfer points
AR BOOT FLIGHT	1/4" (0.6 cm)
FLIGHTING SHAFT	3.5" (8.9 cm) x 11 ga tubing; square flight connector
GREASELESS HANGER BEARING FOR BOOT (NEW)	2 3/8" (6 cm) ID, triple seal
UPPER BEARING	2" (5.1 cm) taper roller bearing assembly
SPEED REDUCER GEARBOX	Enclosed, cast casing, 1000 rpm reducing gearbox (540 rpm) with reversing capability
TUBE TRUSSING	3.5" (8.9 cm) x 11 ga tubing; 1/2" (1.3 cm) cable stays
HYDRAULIC LIFT	2" (5.1cm) x 6 1/2" (16.5 cm) bore cylinders; 1/2" (1.3 cm) aircraft cable
UNDERCARRIAGE	4" (10.2cm) x 8" (20.3cm) HSS tubing
AXLE	4" (10.2 cm) x 4" (10.2 cm) x 3/16" (0.5cm) tubing; 4" (10.2 cm) x 4" (10.2 cm) x 1/4" (0.6 cm) on extensions
HUB	8-bolt agricultural type
TIRES	22.5" (57.2 cm) agricultural tires
PTO SHAFT	50E double CV with 2-bolt shear
PARKING JACK	12,000 lbs (5443.1 kg)
LOW PROFILE HOPPER DIMENSIONS	68" (172.7 cm) length x 46 1/2" (121.9 cm) width x 11" (27.9 cm) height with flat free tires
PSI REQUIRED TO RAISE AUGER	1700 psi (117.2 bar)
HP REQUIRED (WITH DRY WHEAT)	170 - 200 hp
WHEEL TREAD	148" - 182" (375.9 - 462.3 cm)
TRANSPORT HEIGHT (18" HITCH)	15' 6" (4.7 m)
