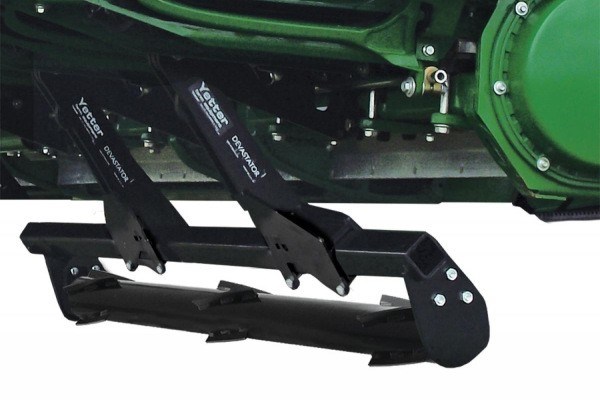

Stalk Rollers 5000 Stalk Devastator™ Stalk Roller Attachment
Today’s hybrids develop tough stalks that can destroy expensive tires and tracks on equipment. The 5000 Stalk Devastator™ saves tires and tracks by knocking over and crimping stalks while leaving them attached, speeding up the cornstalk breakdown process and improving field conditions for spring planting.
Features
- Prevents damage to tires, tracks, wires, and hydraulic hoses on combines, trucks, tractors, and implements
- Knocks over and crimps stalks for faster decomposition and microbial breakdown of residue
- Preserves residue cover, reducing soil erosion and keeping stalks in place in windy conditions
- Quick and easy to install with mounting kits for most corn head models
- Features spring-loaded down pressure
- Solid steel construction ensures reliability and durability
- Will not interfere with most head cart trailers
- Rollers can be locked up for transport or when not in use
Specs
- Rollers cover 2 or 3 rows depending on width and spacing of corn head
- Models available for non-chopping and chopping corn heads with 20" thru 30" row spacing
- Each roller section is equipped with two 1 1/4" square-bore, heavy-duty, non-relubricable, triple-lip sealed, single-row ball bearings on each end
- 1 1/4" x 6" long traction bars maintain roller rotation and crimping of the cornstalks, preventing any slippage; four per row
- Average weight per row: 120 lbs.
|
Model No. |
Description |
Corn Head Model |
Est. Weight |
|
CASE IH |
|||
|
5000-013B |
6-Row |
1063 |
687 lbs. |
|
5000-009B |
6-Row |
2206 |
702 lbs. |
|
5000-005B |
6-Row |
3206/ 3406 |
697 lbs. |
|
5000-029B |
6-Row |
4406 |
682 lbs. |
|
5000-014B |
8-Row |
1083 |
972 lbs. |
|
5000-010B |
8-Row |
2208/2408 |
992 lbs. |
|
5000-006B |
8-Row |
3208/3408 |
842 lbs. |
|
5000-030B |
8-Row |
4408 |
897 lbs. |
|
5000-019B |
12-Row |
2412/3412 |
1,407 lbs. |
|
5000-032B |
12-Row |
4412 Rigid & Folding |
1,302 lbs. |
|
5000-036 |
8-Row |
4408 Folding |
1.014 lbs. |
|
5000-038 |
8-Row |
4408 (2019 and newer) |
950 lbs. |
|
CHALLENGER |
|||
|
5000-023B |
6-Row |
CH630 |
752 lbs. |
|
5000-024B |
8-Row |
CH830 |
1,082 lbs. |
|
DRAGO |
|||
|
5000-007C |
6-row |
630 |
712 lbs. |
|
5000-017C |
8-Row |
830 |
1,082 lbs. |
|
5000-018C |
12-Row |
1230 |
1,392 lbs. |
|
5000-050A |
6-Row |
6R DRAGO GT |
517 lbs. |
|
5000-051A |
8-Row |
8R DRAGO GT |
742 lbs. |
|
5000-052A |
12-Row |
12R DRAGO GT |
1,037 lbs. |
|
FANTINI |
|||
|
5000-031B |
8-Row |
Fantini |
1,070 lbs. |
|
GERINGHOFF |
|||
|
5000-021B |
6-Row |
630 |
687 lbs. |
|
5000-015B |
8-Row |
830 |
1,092 lbs. |
|
5000-016B |
12-Row |
1230 |
1,467 lbs. |
|
5000-037 |
8-Row |
Folding |
1,000 lbs. |
|
GLEANER |
|||
|
5000-023B |
6-Row |
3000 or Hugger 630 (1988 & newer) |
870 lbs. |
|
5000-024B |
8-Row |
3000 or Hugger 830 (1988 & newer) |
1,082 lbs. |
|
5000-035A |
8-Row |
3308 |
1,022 lbs. |
|
JOHN DEERE |
|||
|
5000-025B |
6-Row |
643/693/606C & 612C wheel tracks only |
682 lbs. |
|
5000-026B |
8-Row |
608C/843/893 |
987 lbs. |
|
5000-027B |
12-Row |
612C/1243/1293 |
1,341 lbs. |
|
5000-034A |
12-Row |
612 FC “FOLDING” |
1,372 lbs. |
|
5000-028B |
16-Row |
616C |
1,932 lbs. |
|
5000-040A |
6-Row |
606C/706C STALKMASTER™ |
950 lbs. |
|
5000-041A |
8-Row |
608C/708C STALKMASTER™ |
582 lbs. |
|
5000-042A |
12-Row |
12R 20" 612C/712C STALKMASTER™ |
750 lbs. |
|
5000-043A |
12-Row |
1290 CHOPPING |
750 lbs. |
|
5000-044A |
12-Row |
612C/712C STALKMASTER™ |
935 lbs. |
|
5000-045A |
18-Row |
18R 20" 618C/718C STALKMASTER™ |
982 lbs. |
|
5000-047A |
18-Row |
18R 22" 618C/718C STALKMASTER™ |
1,017 lbs. |
|
LEXION/CAPELLO |
|||
|
5000-033A |
8-Row |
C508-30 |
1,070 lbs. |
|
5000-022B |
12-Row |
C512-30/Capello |
1,362 lbs. |
|
MASSSEY FERGUSON |
|||
|
5000-023B |
6-Row |
3000 (1988 & newer) |
752 lbs. |
|
5000-024B |
8-Row |
3000 (1988 & newer) |
1,082 lbs. |
|
NEW HOLLAND |
|||
|
5000-009B |
6-Row |
96C/996 |
702 lbs. |
|
5000-005B |
6-Row |
98D |
697 lbs. |
|
5000-029B |
6-Row |
980CR |
682 lbs. |
|
5000-006B |
8-Row |
98D |
842 lbs. |
|
5000-010B |
8-Row |
96C/98C/996 |
1,060 lbs. |
|
5000-030B |
8-Row |
980CR |
897 lbs. |
|
5000-019B |
12-Row |
98C/98D/996 |
1,435 lbs. |
|
5000-032B |
12-Row |
980CR Rigid & Folding |
1,302 lbs. |
